3W isolated DC/DC converter with 24Vdc output voltage and 125mA output current. Features an 18-36Vdc input range, 82% efficiency, and overload/short-circuit protection. SIP package for through-hole mounting, operating from -40°C to 105°C with 1.5kV isolation.
PackageSIP
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
CUI PQMC3-D24-S24-S technical specifications.
General
Package/Case
SIP
Current - Output 1
125mA
Efficiency
82%
Features
OCP, SCP
Height
0.47inch
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
0.87inch
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Current
125mA
Max Power Dissipation
3W
Mount
Through Hole
Number of Outputs
1
Output Power
3W
Output Voltage
24V
Package Quantity
22
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PQMC3-S
Voltage - Output 1
24V
Weight
0.172842oz
Width
0.37inch
Compliance
RoHS
Compliant
Datasheet
CUI PQMC3-D24-S24-S Datasheet
Download the complete datasheet for CUI PQMC3-D24-S24-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

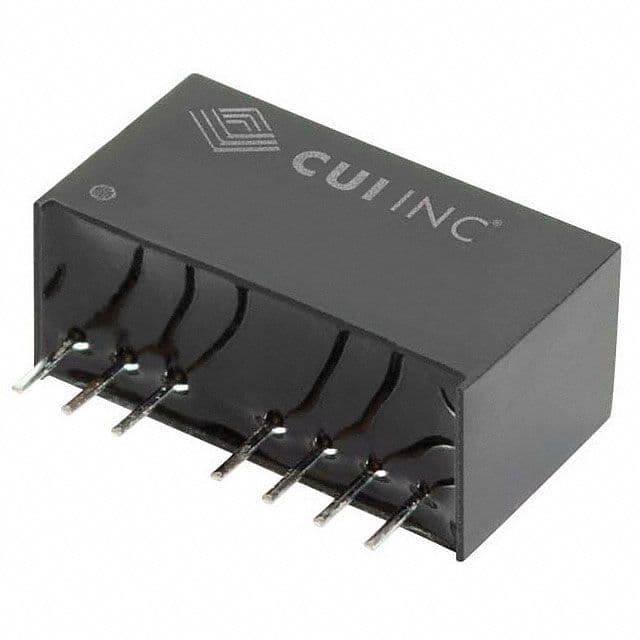

Product Images
