Board mount DC/DC converter delivering 15W output power with a 24Vdc output voltage and 625mA maximum output current. Features a wide 9-36 Vdc input range and 90% efficiency. Isolated design with 1.5kV isolation voltage, protected by UVLO, OVP, OCP, and SCP features. Packaged in a DIP through-hole mount, measuring 2 x 1 x 0.47 inches, operating from -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power15W
Quick Jump:
Technical Specifications
CUI PYB15-Q24-S24 technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 625mA |
| Efficiency | 90% |
| Features | UVLO, OVP, OCP, SCP |
| Height | 0.47inch |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 2inch |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 625mA |
| Max Power Dissipation | 15W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 15W |
| Output Voltage | 24V |
| Package Quantity | 19 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | PYB15 |
| Voltage - Output 1 | 24V |
| Weight | 1oz |
| Width | 1inch |
Compliance
| RoHS | Compliant |
Datasheet
CUI PYB15-Q24-S24 Datasheet
Download the complete datasheet for CUI PYB15-Q24-S24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

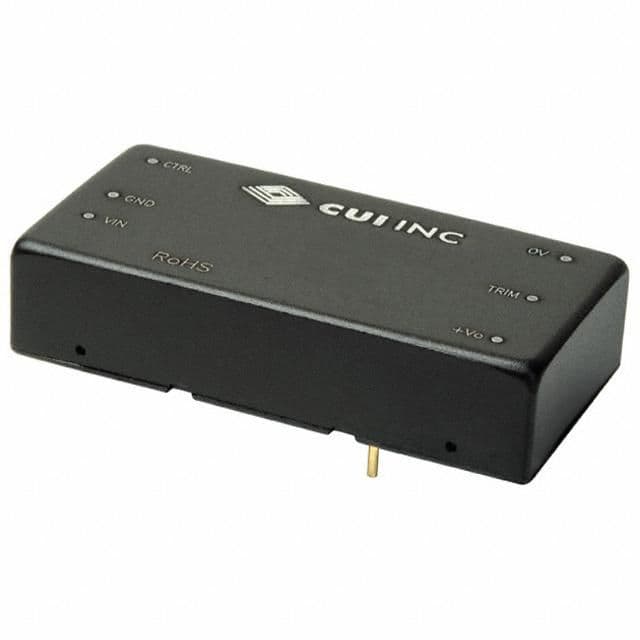

Product Images
