15W DC/DC converter with a 5Vdc, 3A output. Features a 9-36 Vdc input range and 88% efficiency. This board mount converter offers a single output and operates across a -40°C to 85°C temperature range. Designed for DIN rail mounting, it is RoHS compliant and lead-free.
MountingDIN Rail
Power15W
Quick Jump:
Technical Specifications
CUI PYB15-Q24-S5-DIN technical specifications.
General
| Current - Output 1 | 3A |
| Efficiency | 88% |
| Height | 25.8mm |
| Lead Free | Lead Free |
| Length | 76mm |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 15W |
| Mount | DIN Rail |
| Number of Outputs | 1 |
| Output Power | 15W |
| Package Quantity | 40 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | PYB15-DIN (15W) |
| Voltage - Output 1 | 5V |
| Weight | 2.469177oz |
| Width | 31.5mm |
Compliance
| RoHS | Compliant |
Datasheet
CUI PYB15-Q24-S5-DIN Datasheet
Download the complete datasheet for CUI PYB15-Q24-S5-DIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

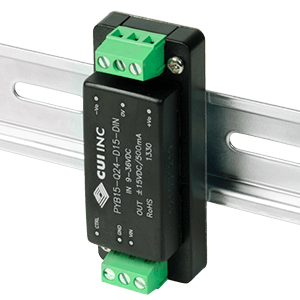

Product Images
