Isolated DC/DC converter, board mount, 20W output power, 5V output voltage, and 4A maximum output current. Features a wide 9-36 Vdc input range, 90% efficiency, and integrated UVLO, OVP, OCP, and SCP protection. Operates across a -40°C to 85°C temperature range and is housed in a DIP package with through-hole mounting.
PackageDIP
MountingThrough Hole
Power20W
Quick Jump:
Technical Specifications
CUI PYB20-Q24-S5 technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 4A |
| Efficiency | 90% |
| Features | UVLO, OVP, OCP, SCP |
| Height | 0.47inch |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 2inch |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Power Dissipation | 20W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 20W |
| Output Voltage | 5V |
| Package Quantity | 19 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | PYB20 |
| Voltage - Output 1 | 5V |
| Weight | 1oz |
| Width | 1inch |
Compliance
| RoHS | Compliant |
Datasheet
CUI PYB20-Q24-S5 Datasheet
Download the complete datasheet for CUI PYB20-Q24-S5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

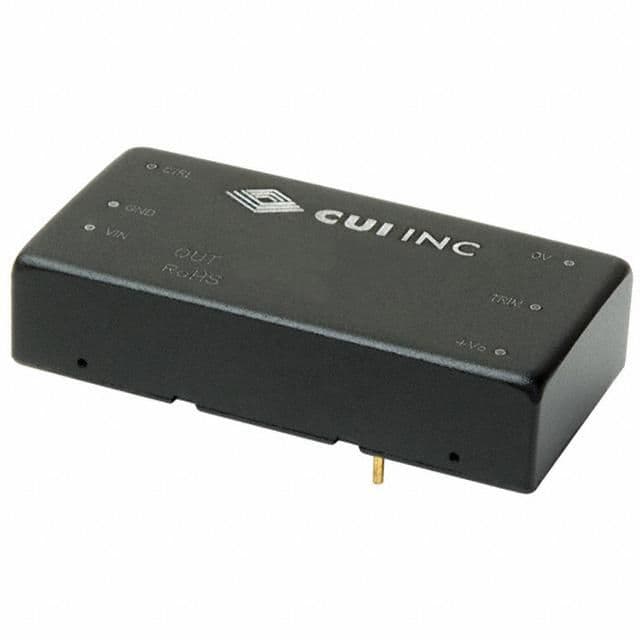

Product Images
