Surface mount DC-DC converter module providing a single 12V output at 500mA, delivering 5W of output power with up to 95% efficiency. Features include over-temperature protection (OTP) and short-circuit protection (SCP). Operates from a 14V to 28V input voltage range and is RoHS compliant. Encased in a compact SMD/SMT package measuring 0.6 x 0.34 x 0.28 inches, suitable for surface mounting.
PackageSMD/SMT
MountingSurface Mount
Power5W
Quick Jump:
Technical Specifications
CUI V7812-500-SMT-TR technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Output 1 | 500mA |
| Efficiency | 95% |
| Features | OTP, SCP |
| Height | 0.28inch |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 0.6inch |
| Max Input Voltage | 28V |
| Min Input Voltage | 14V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 6W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Power | 5W |
| Output Voltage | 12V |
| Package Quantity | 500 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | V78-500-SMT |
| Voltage - Output 1 | 12V |
| Width | 0.34inch |
Compliance
| RoHS | Compliant |
Datasheet
CUI V7812-500-SMT-TR Datasheet
Download the complete datasheet for CUI V7812-500-SMT-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

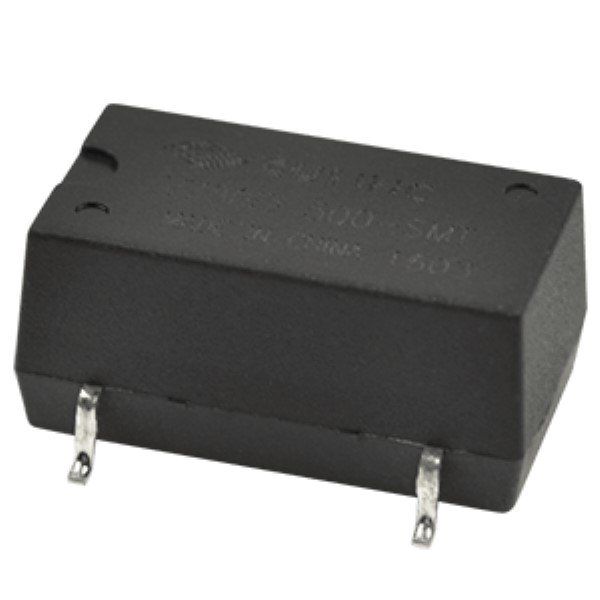

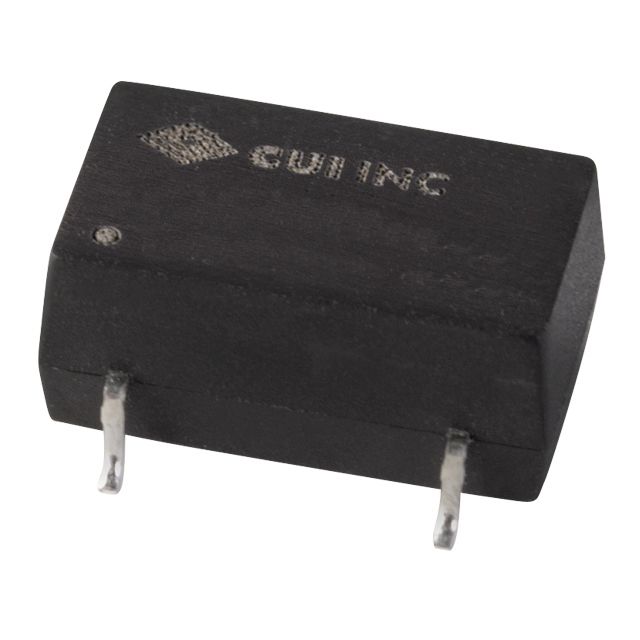

Product Images
