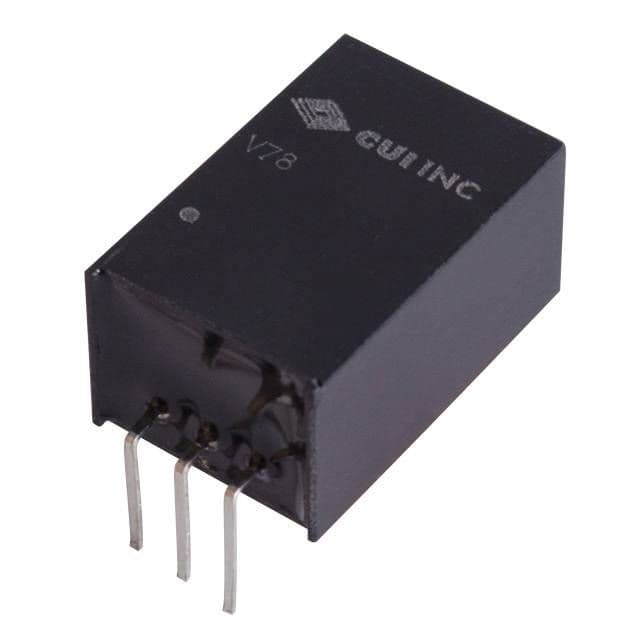

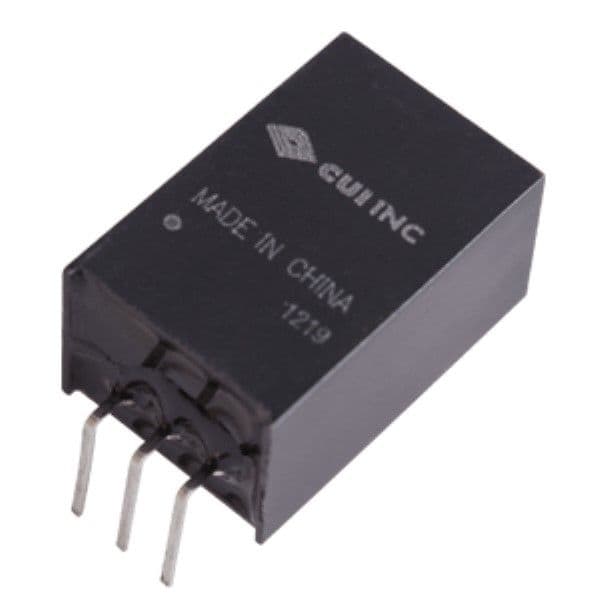

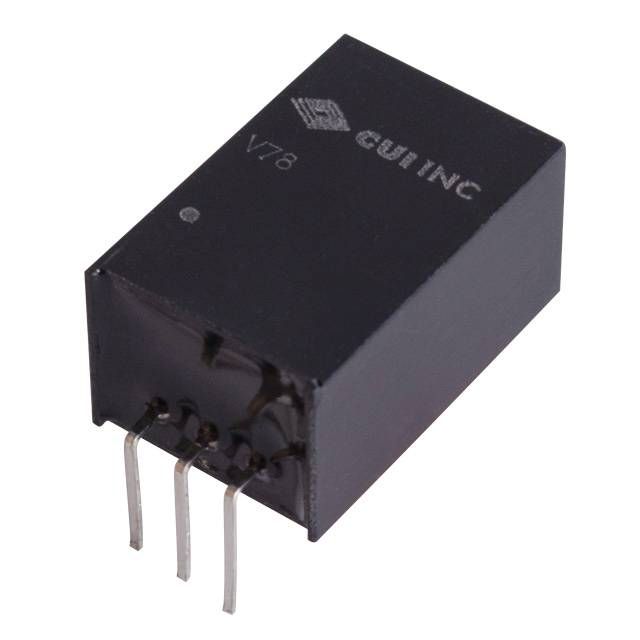

Board mount DC/DC converter offering a 12Vdc output at 500mA, delivering 6W of power. Features a wide input voltage range of 17-72Vdc and non-isolated operation. Designed for through-hole mounting in a SIP package, it boasts 93% efficiency and includes over-temperature protection (OTP) and short-circuit protection (SCP). Operating across a -40°C to 85°C temperature range, this lead-free and RoHS compliant component is supplied in rail/tube packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CUI V7812W-500R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Current - Output 1 | 500mA |
| Efficiency | 93% |
| Features | OTP, SCP |
| Height | 0.35inch |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 0.69inch |
| Max Input Voltage | 72V |
| Min Input Voltage | 17V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 6W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 6W |
| Output Voltage | 12V |
| Package Quantity | 44 |
| Packaging | Rail/Tube |
| Resistance | -500R |
| RoHS Compliant | Yes |
| Series | V78W-500 |
| Voltage - Output 1 | 12V |
| Width | 0.45inch |
| RoHS | Compliant |
