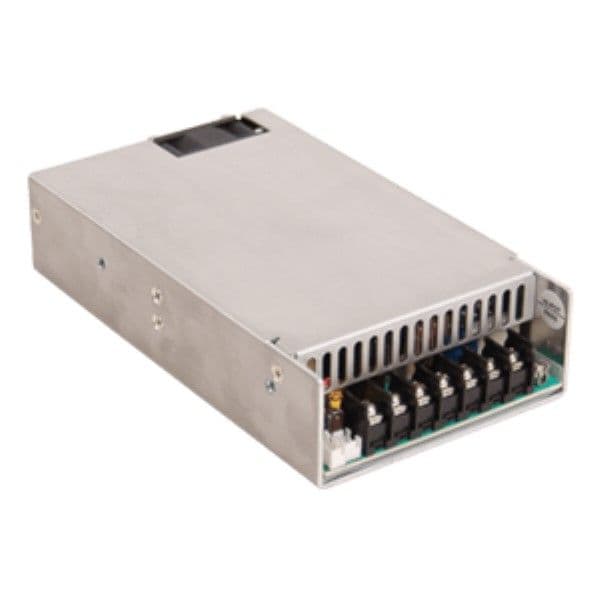

Board mount DC/DC converter delivering 48Vdc output voltage with a maximum output current of 6.67A, providing up to 320W of power. Features 3kV isolation voltage and 83% efficiency. Operates within a temperature range of 0°C to 70°C. Chassis mount design with a single output.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CUI VF-S320-48A-CFS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Efficiency | 83% |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 6.67A |
| Max Power Dissipation | 320W |
| Mount | Chassis Mount |
| Number of Outputs | 1 |
| RoHS Compliant | No |
| Series | VF-S320 (320W) |
| Voltage - Output 1 | 48V |
| RoHS | Not Compliant |
