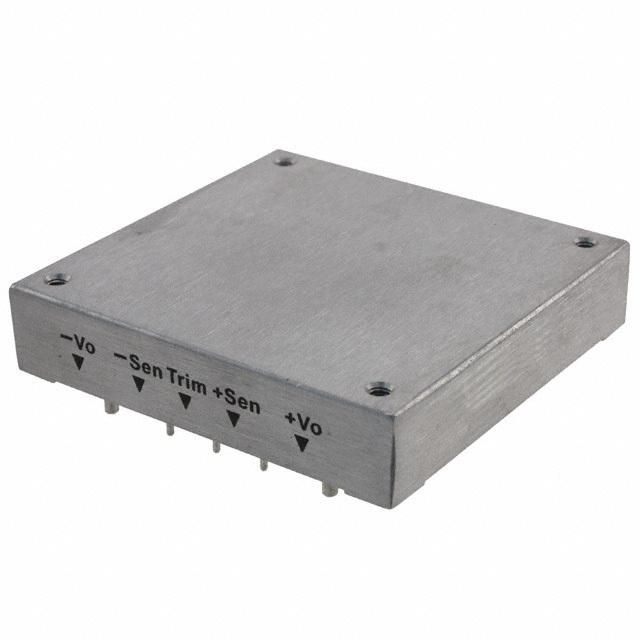

Board mount DC/DC converter, 100W output power, 48V output voltage, 2.08A maximum output current. Features a wide 9-36 Vdc input range with 85% efficiency. Integrated protection includes UVLO, OVP, OCP, OTP, and SCP. Operates from -40°C to 100°C with 1.5kV isolation. DIP package for through-hole mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CUI VHB100W-Q24-S48 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
CUI VHB100W-Q24-S48 technical specifications.
| Package/Case | DIP |
| Current - Output 1 | 2.08A |
| Efficiency | 85% |
| Features | UVLO, OVP, OCP, OTP, SCP |
| Height | 0.5inch |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 2.4inch |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.08A |
| Max Power Dissipation | 100W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 100W |
| Output Voltage | 48V |
| Package Quantity | 48 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | VHB100W |
| Voltage - Output 1 | 48V |
| Weight | 3.351026oz |
| Width | 2.28inch |
| RoHS | Compliant |
