350W board mount DC-DC converter with 28Vdc output voltage and 12.5A max output current. Features a wide 36~75 Vdc input range, 92.5% efficiency, and 1.5kV isolation. Operating temperature range spans -40°C to 100°C, with integrated over-voltage, over-current, over-temperature, and short-circuit protection. DIP package with through-hole mounting.
PackageDIP
MountingThrough Hole
Power350W
Quick Jump:
Technical Specifications
CUI VHB350-D48-S28 technical specifications.
General
| Package/Case | DIP |
| Efficiency | 92.5% |
| Features | UVLO, OVP, OCP, OTP, SCP |
| Height | 0.52inch |
| Isolation | Isolated |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 2.4inch |
| Max Input Voltage | 75V |
| Min Input Voltage | 36V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12.5A |
| Max Power Dissipation | 350W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 350W |
| Output Voltage | 28V |
| Package Quantity | 48 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | VHB350 |
| Voltage - Output 1 | 28V |
| Weight | 4.021232oz |
| Width | 2.28inch |
Compliance
| RoHS | Compliant |
Datasheet
CUI VHB350-D48-S28 Datasheet
Download the complete datasheet for CUI VHB350-D48-S28 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

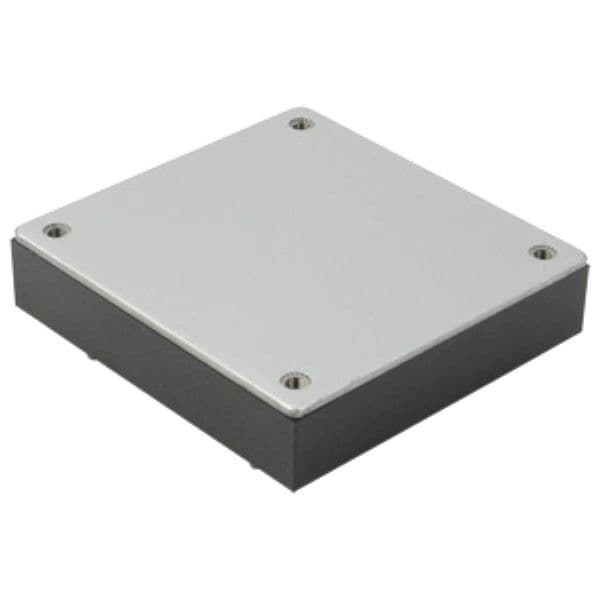

Product Images
