Isolated DC/DC converter, board mount, DIP package, delivering 5Vdc at 200mA for 1W output power. Features a 4.75~5.25Vdc input range, 1kV isolation voltage, and 69% efficiency. Operates across a -40°C to 85°C temperature range with short-circuit protection.
PackageDIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI VIBLSD1-S5-S5-DIP technical specifications.
General
| Package/Case | DIP |
| Current - Output 1 | 200mA |
| Efficiency | 69% |
| Features | SCP |
| Height | 0.26inch |
| Isolation | Isolated |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 0.8inch |
| Max Input Voltage | 5.25V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 1W |
| Output Voltage | 5V |
| Package Quantity | 25 |
| RoHS Compliant | Yes |
| Series | VIBLSD1-DIP |
| Voltage - Output 1 | 5V |
| Weight | 0.084658oz |
| Width | 0.39inch |
Compliance
| RoHS | Compliant |
Datasheet
CUI VIBLSD1-S5-S5-DIP Datasheet
Download the complete datasheet for CUI VIBLSD1-S5-S5-DIP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

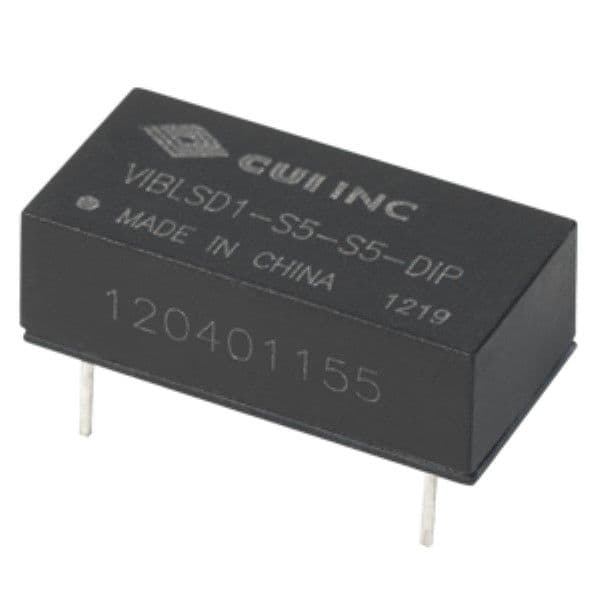

Product Images
