Board mount DC-DC converter, 1W output power, featuring dual outputs of 15V and -8.7V with respective currents of 400mA and 800mA. Input voltage range spans 23.3V to 24.7V DC. Offers 3kV isolation voltage and operates efficiently at 80%. Designed for through-hole mounting in a SIP package, with a wide operating temperature range from -40°C to 105°C.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
CUI VQA-S24-D15-SIP technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 400mA |
| Current - Output 2 | 800mA |
| Efficiency | 80% |
| Features | SCP |
| Height | 0.49inch |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 0.77inch |
| Max Input Voltage | 24.7V |
| Min Input Voltage | 23.3V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 40mA |
| Max Power Dissipation | 2W |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Output Power | 1W |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | VQA |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -8.7V |
| Weight | 0.151678oz |
| Width | 0.39inch |
Compliance
| RoHS | Not Compliant |
Datasheet
CUI VQA-S24-D15-SIP Datasheet
Download the complete datasheet for CUI VQA-S24-D15-SIP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

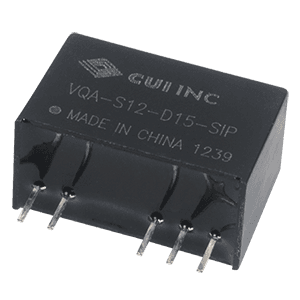

Product Images
