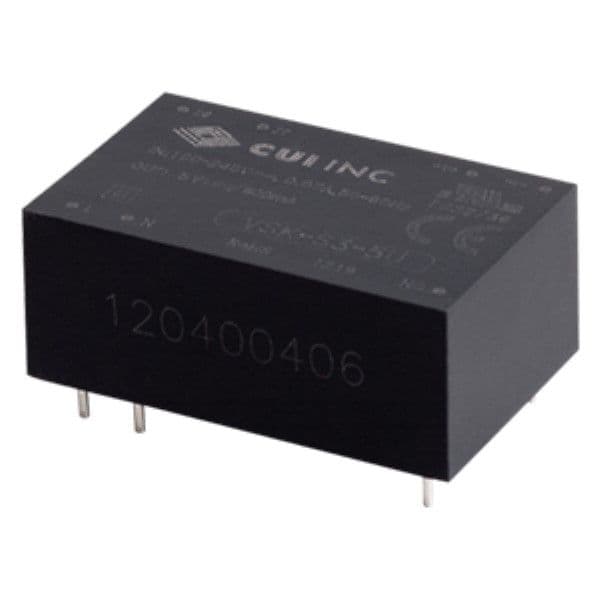

Board mount AC-DC power supply delivering 3W output power with a single 5Vdc output at 600mA. Features 72% efficiency, through-hole mounting, and protection circuits including OVP, OTP, and SCP. Operates across a -25°C to 70°C temperature range. Compact dimensions of 37mm length, 23mm width, and 15mm height. RoHS compliant and lead-free construction.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CUI VSK-S3-5U datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Current - Output 1 | 600mA |
| Efficiency | 72% |
| Features | OVP, OTP, SCP |
| Height | 15mm |
| Lead Free | Lead Free |
| Length | 37mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 600mA |
| Max Power Dissipation | 3W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 3W |
| Output Voltage | 5V |
| Package Quantity | 13 |
| RoHS Compliant | Yes |
| Series | VSK-S3 (3W) |
| Voltage - Output 1 | 5V |
| Weight | 0.056lb |
| Width | 23mm |
| RoHS | Compliant |
