This 6A SPST off-momentary panel mount switch has a maximum operating temperature of 85°C and a minimum operating temperature of -20°C. It is rated for 125V AC and has a current rating of 6A. The switch is a round button type with a solder termination and is available in a bulk packaging quantity of 1000. It is not RoHS compliant.
Current Rating6A
MountingPanel, Front
Quick Jump:
Technical Specifications
CW Industries GPB507A05BR technical specifications.
General
| Actuator Type | Round, Button |
| Current Rating | 6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Package Quantity | 1000 |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | GPB |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Not Compliant |
Datasheet
CW Industries GPB507A05BR Datasheet
Download the complete datasheet for CW Industries GPB507A05BR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

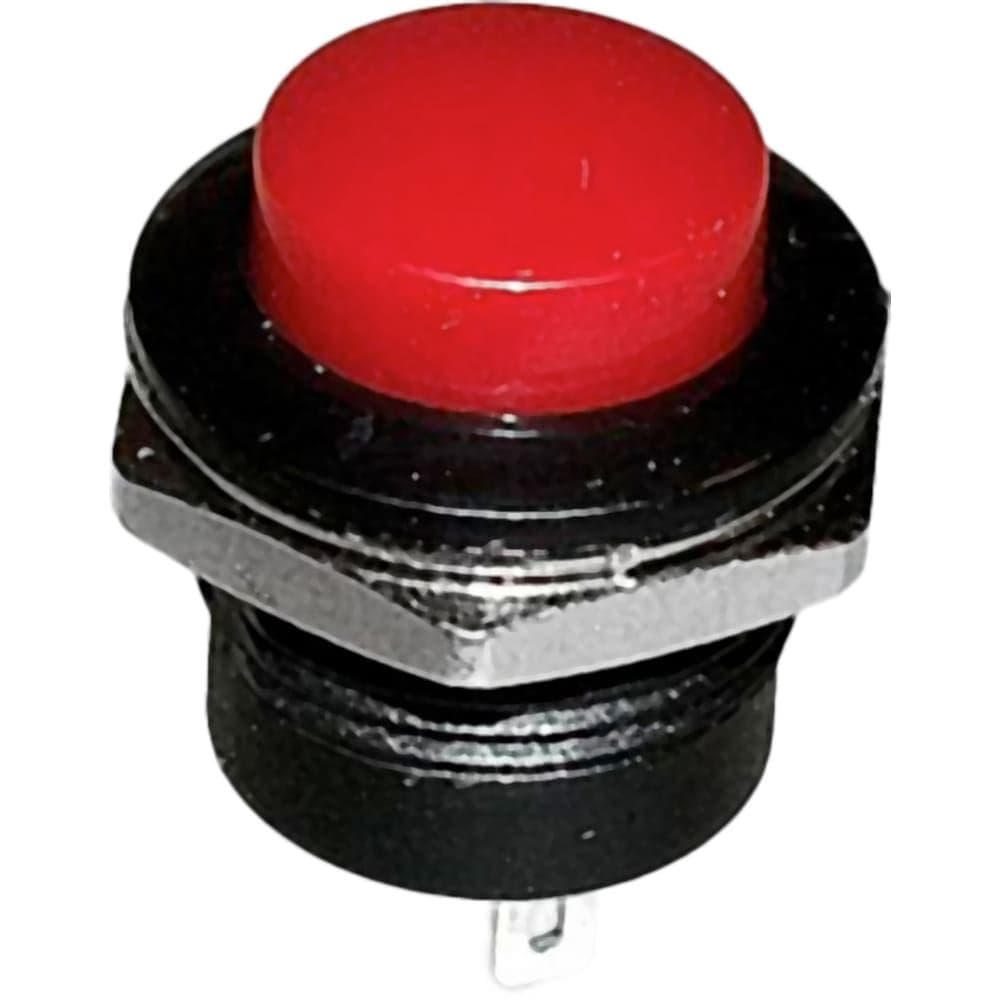

Product Images
