The GPB508AL05BR is a round button pushbutton switch with a current rating of 3A and a voltage rating of 125V AC. It features a SPST throw configuration and is designed for panel mount applications. The switch has a maximum operating temperature of 85°C and a minimum operating temperature of -20°C. It is not RoHS compliant and is available in bulk packaging.
Current Rating3A
MountingPanel, Front
Quick Jump:
Technical Specifications
CW Industries GPB508AL05BR technical specifications.
General
| Actuator Type | Round, Button |
| Current Rating | 3A |
| Illumination Type | LED |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Panel, Front |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | GPB |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Not Compliant |
Datasheet
CW Industries GPB508AL05BR Datasheet
Download the complete datasheet for CW Industries GPB508AL05BR to view detailed technical specifications.
No datasheet is available for this part.

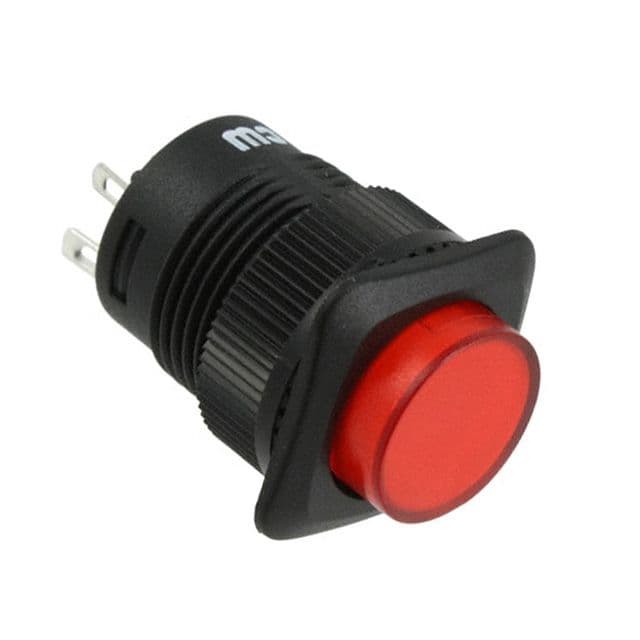

Product Images
