CW Industries
GPB553B2L01BR
Illuminated Pushbutton Switch, SPST, 10A 14VDC, Panel Mount, Quick Connect
SPST pushbutton switch featuring a round button actuator, rated for 10A and 14VDC. Designed for panel mounting with quick connect termination, this illuminated switch offers an electrical life of 20,000 cycles. Operating within a temperature range of -25°C to 85°C, it boasts IP65, water-resistant, and dust-tight ratings.
Current Rating10A
MountingPanel, Front
Quick Jump:
Technical Specifications
CW Industries GPB553B2L01BR technical specifications.
General
Actuator Type
Round, Button
Current Rating
10A
Electrical Life
20000Cycles
Illumination Type
LED
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Panel, Front
Package Quantity
500
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
RoHS Compliant
No
Series
GPB
Switch Function
Off-On
Termination
Quick Connect
Throw Configuration
SPST
DC Rated Voltage
14V
Compliance
RoHS
Not Compliant
Datasheet
CW Industries GPB553B2L01BR Datasheet
Download the complete datasheet for CW Industries GPB553B2L01BR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

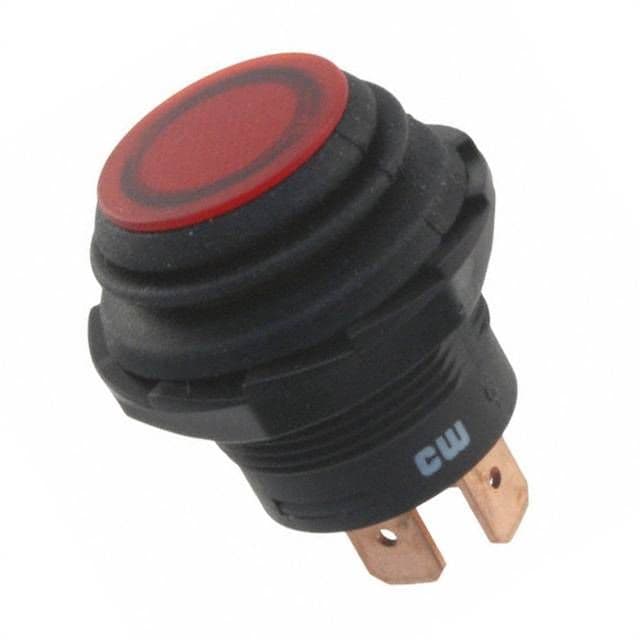

Product Images
