CW Industries
GPBS-800L
Special Switch, DPDT, On-on, 0.1A, 30VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight,
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
CW Industries GPBS-800L technical specifications.
General
Current Rating
100mA
Electrical Life
10000Cycles
Flammability Rating
UL94 V-2
Length
8mm
Life (Hours)
100000Hour
Max Operating Temperature
65°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Package Quantity
3000
Packaging
Bulk
RoHS Compliant
No
Series
GPBS
Switch Function
On-On
Termination
PC Pin
Throw Configuration
DPDT
DC Rated Voltage
30V
Width
8mm
Compliance
RoHS
Not Compliant
Datasheet
CW Industries GPBS-800L Datasheet
Download the complete datasheet for CW Industries GPBS-800L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

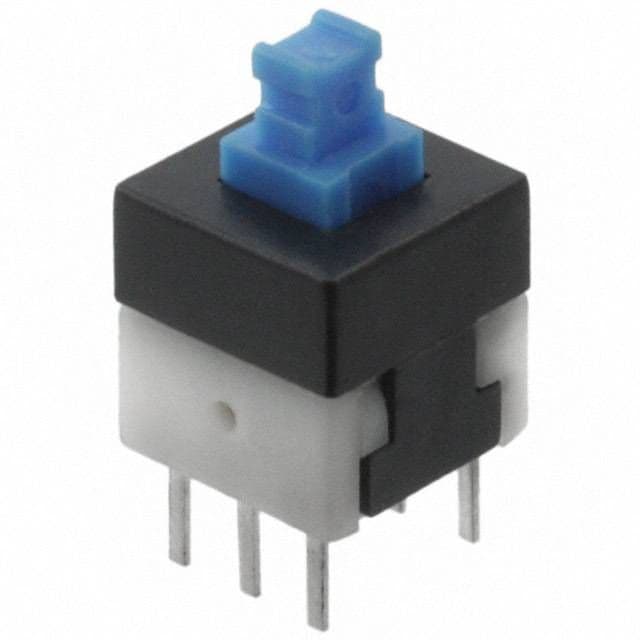

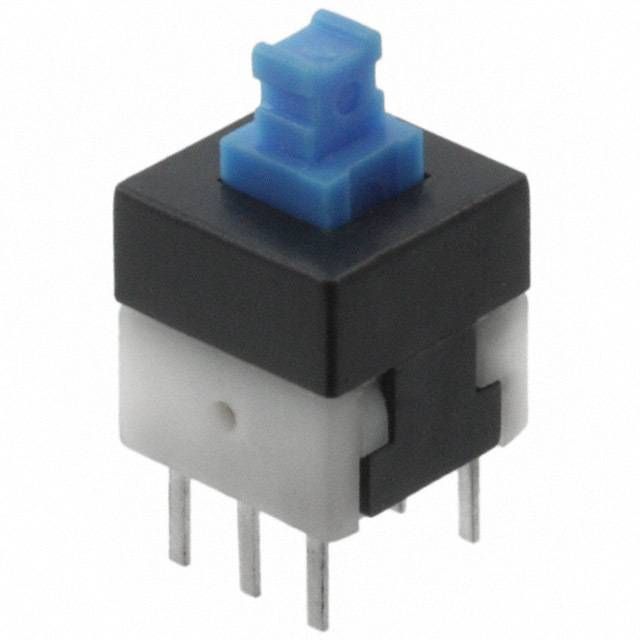

Product Images
