CW Industries
GS-115-0054
Slide Switch, SPDT, On-on, Latched, 0.5A, 125VDC, Solder Terminal, Through Hole-straight,
MountingThrough Hole
Quick Jump:
Technical Specifications
CW Industries GS-115-0054 technical specifications.
General
| Actuator Length | 3.18mm |
| Actuator Material | Nylon, Polyamide, PA66 |
| Actuator Type | Standard |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Max Operating Temperature | 104°C |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | GS |
| Switch Function | On-On |
| Switch Travel | 2.67mm |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
Compliance
| RoHS | Not Compliant |
Datasheet
CW Industries GS-115-0054 Datasheet
Download the complete datasheet for CW Industries GS-115-0054 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

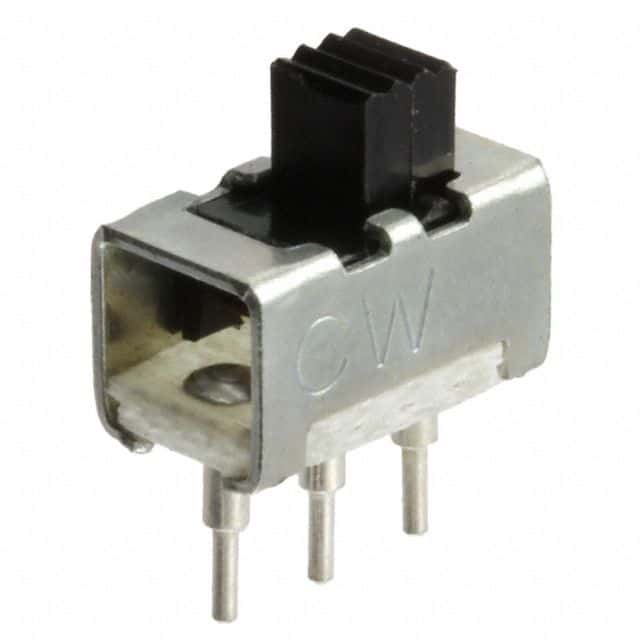

Product Images
