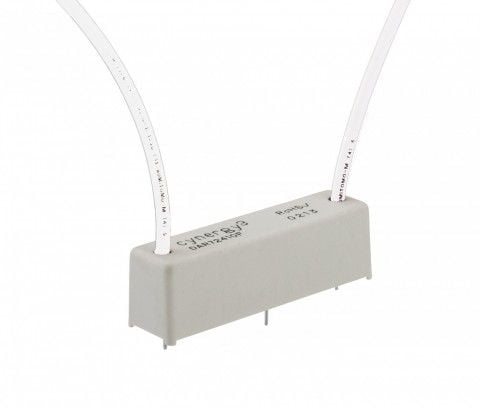

SPST-NO reed relay featuring a 24 VDC coil voltage and 350 ohm coil resistance, drawing 68.6mA. Offers a 2A contact current rating with tungsten contacts and a 50W switching capacity. Designed for through-hole PCB mounting with wire lead termination, this relay operates within a -20°C to 70°C temperature range and boasts a 100 million operation life.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cynergy3 DAT72415F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cynergy3 DAT72415F technical specifications.
| Coil Current | 68.6mA |
| Coil Resistance | 350R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 2A |
| Contact Material | Tungsten |
| Current Rating | 2A |
| Depth | 15.8mm |
| Height | 18.5mm |
| Length | 60mm |
| Life (Hours) | 100000000Hour |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB |
| Operate Time | 3ms |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| Relay Type | Reed |
| Release Time | 2ms |
| RoHS Compliant | Yes |
| Series | DA |
| Switching Capacity | 50W |
| Switching Current | 2A |
| Switching Voltage | 10kV |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Weight | 38g |
| RoHS | Compliant |
