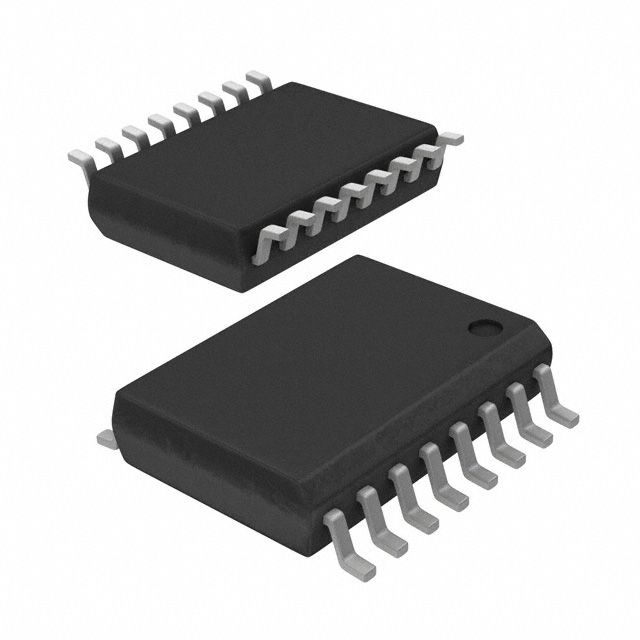

1Mb Serial SPI NVSRAM, featuring 128K x 8 organization and 8-bit data bus width. Offers a maximum access time of 15ns and operates at frequencies up to 40MHz. This surface mount device is housed in a 16-pin SOIC package with tin contact plating. It operates from a 2.7V to 3.6V supply voltage range, with a nominal 3.3V. Designed for industrial temperature ranges (-40°C to 85°C), it is RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY14B101PA-SFXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY14B101PA-SFXI technical specifications.
| Access Time-Max | 15ns |
| Package/Case | SOIC |
| Contact Plating | Tin |
| Data Bus Width | 8b |
| Density | 1Mb |
| Frequency | 40MHz |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 3.6V |
| Memory Size | 1Mb |
| Memory Type | Non-Volatile, , NVSRAM, RAM |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Organization | 128KX8 |
| Package Quantity | 46 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 3.6V |
| Temperature Grade | INDUSTRIAL |
| Word Size | 8b |
| RoHS | Compliant |
Download the complete datasheet for Cypress CY14B101PA-SFXI to view detailed technical specifications.
