Technical Specifications
Cypress CY14B104NA-BA45XI technical specifications.
General
| Access Time | 45ns |
| Access Time-Max | 45ns |
| Package/Case | FBGA |
| Contact Plating | Copper, Tin, Silver |
| Data Bus Width | 16b |
| Density | 4Mb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Memory Size | 4Mb |
| Memory Type | Non-Volatile, , NVSRAM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3V |
| Organization | 256KX16 |
| Package Quantity | 299 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 52mA |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY14B104NA-BA45XI Datasheet
Download the complete datasheet for Cypress CY14B104NA-BA45XI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

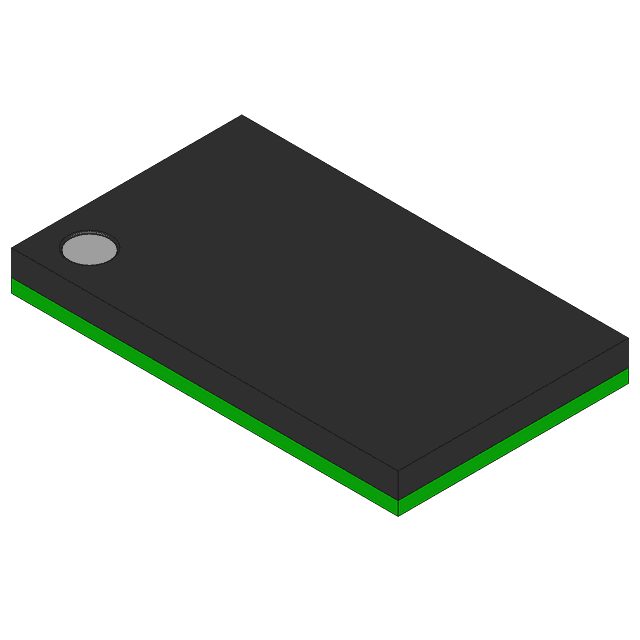

Product Images
