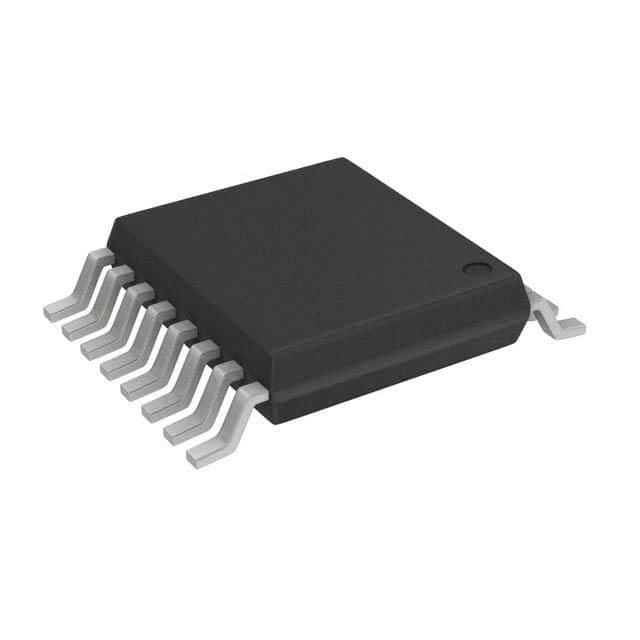

CMOS clock generator and synthesizer featuring a maximum frequency of 166.6MHz. This integrated circuit operates with a 3.3V supply voltage, drawing a maximum supply current of 45mA. It offers six outputs and utilizes a crystal input, incorporating Phase-Locked Loop (PLL) technology. Packaged in a 16-lead TSSOP with tin/lead contact plating, this component is RoHS compliant and designed for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY22050KFI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY22050KFI technical specifications.
| Package/Case | Z |
| Contact Plating | Tin, Lead |
| Height | 0.95mm |
| Input | Crystal |
| Lead Free | Contains Lead |
| Length | 5.1mm |
| Max Frequency | 166.6MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 45mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 6 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 480 |
| Packaging | Rail/Tube |
| PLL | Yes |
| Power Dissipation | 380mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CY22050KF |
| Supply Current | 45mA |
| Width | 4.5mm |
| RoHS | Compliant |
