Clock Generator IC with 6 outputs, operating from 1MHz to 166MHz input and synthesizing up to 200MHz output. Features a 16-pin TSSOP package with gull wing terminals, surface mount capability, and a rectangular plastic body. This RoHS compliant, lead-free component operates within a 3.135V to 3.465V supply voltage range, with a nominal 3.3V, and a maximum supply current of 100mA. Designed for commercial temperature grades (0°C to 70°C), it includes PLL functionality and a maximum duty cycle of 60%.
Frequency200MHz
PackageTSSOP
Current100mA
Quick Jump:
Technical Specifications
Cypress CY22393FXC technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Gold, Matte
Frequency
200MHz
Height
0.95mm
Input
Crystal
JESD-30 Code
R-PDSO-G16
Lead Free
Lead Free
Length
5.1mm
Max Duty Cycle
60%
Max Frequency
200MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
100mA
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Moisture Sensitivity Level
1
Number of Circuits
1
Number of Elements
3
Number of Functions
1
Number of Outputs
6
Operating Supply Current
5uA
Operating Supply Voltage
3.3V
Package Body Material
Plastic
Package Code
TSSOP
Package Quantity
96
Package Shape
Rectangular
Packaging
Rail/Tube
Peak Reflow Temperature (Cel)
260°C
PLL
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Series
CY22393FXC
Supply Current
100mA
Supply Voltage-Nom
3.3V
Surface Mount
Yes
Temperature Grade
COMMERCIAL
Terminal Finish
Nickel
Terminal Form
Gull Wing
Terminal Position
DUAL
Time @ Peak Reflow Temperature-Max (s)
20s
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Cypress CY22393FXC Datasheet
Download the complete datasheet for Cypress CY22393FXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

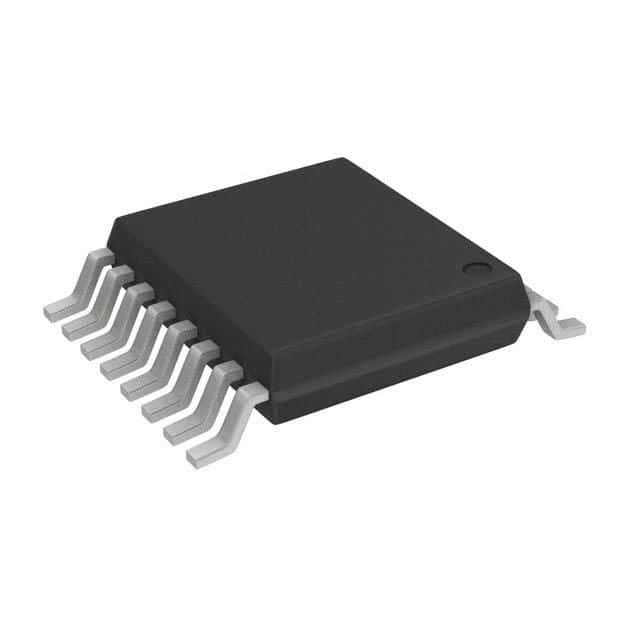

Product Images
