Zero delay buffer, featuring 5 single-ended LVCMOS outputs. This integrated circuit operates with a 3.3V supply voltage, ranging from 3V to 3.6V, and consumes 35mA. It supports a maximum frequency of 133.33MHz and includes a Phase-Locked Loop (PLL). Packaged in an 8-pin SOIC with tin, gold, and matte contact plating, this RoHS compliant component is supplied on tape and reel.
Frequency133.33MHz
PackageSOIC
Current35mA
Quick Jump:
Technical Specifications
Cypress CY2305SXI-1T technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Tin, Gold, Matte |
| Input | Clock |
| Lead Free | Lead Free |
| Max Frequency | 133.33MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 5 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| PLL | Yes |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 35mA |
| Supply Voltage-Nom | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY2305SXI-1T Datasheet
Download the complete datasheet for Cypress CY2305SXI-1T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

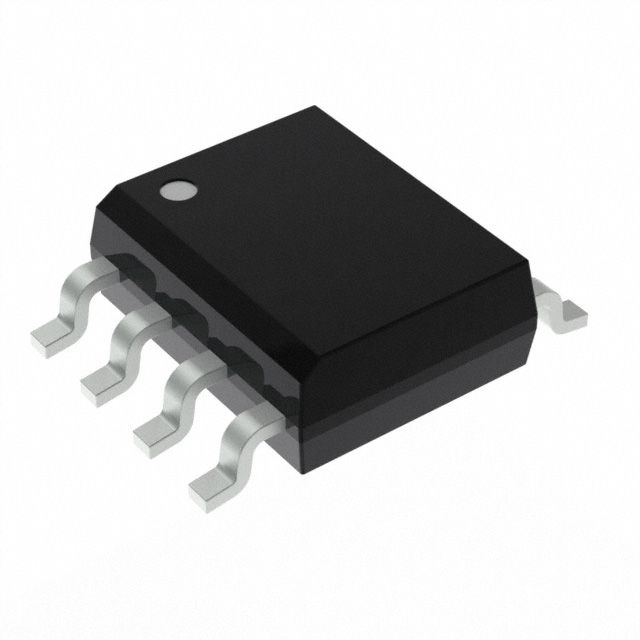

Product Images
