Programmable Logic Device (PLD) featuring 192 macrocells and 5700 gates. This CMOS device operates at a maximum frequency of 66MHz with a propagation delay of 20ns. It offers 125 programmable I/Os and is housed in a 160-pin TQFP package for surface mounting. The device supports an operating supply voltage range of 3V to 3.6V and is RoHS compliant.
Frequency66MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY37192VP160-66AXC technical specifications.
General
| Package/Case | TQFP |
| Frequency | 66MHz |
| Lead Free | Lead Free |
| Max Frequency | 66MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 5700 |
| Number of I/Os | 125 |
| Number of Logic Blocks (LABs) | 12 |
| Number of Logic Elements/Cells | 12 |
| Number of Macrocells | 192 |
| Number of Programmable I/O | 125 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 40 |
| Packaging | Tray |
| Propagation Delay | 20ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Ultra37000™ |
| Turn-On Delay Time | 20ns |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY37192VP160-66AXC Datasheet
Download the complete datasheet for Cypress CY37192VP160-66AXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

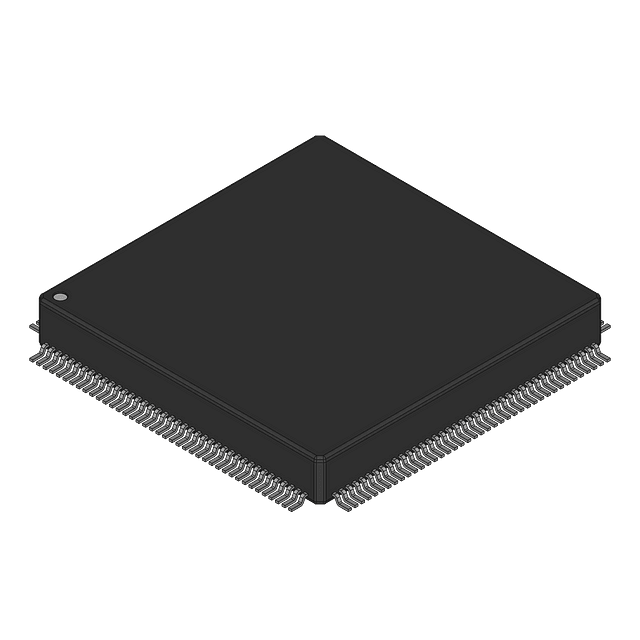

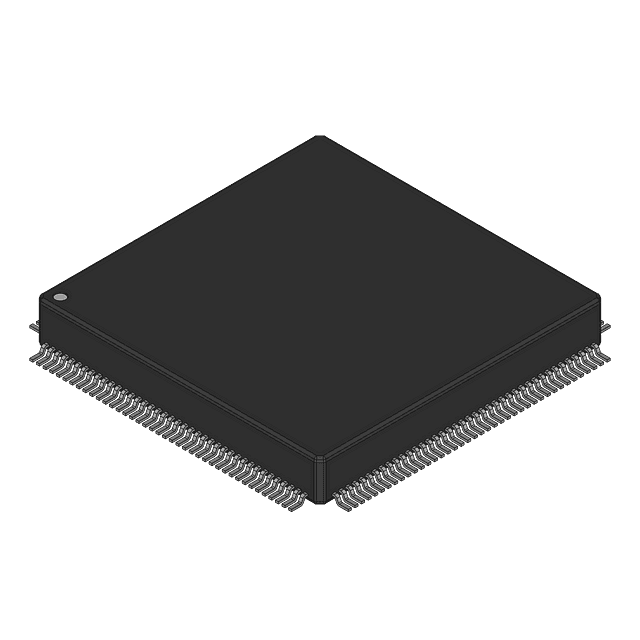

Product Images
