1Mb Asynchronous SRAM, 128K x 8 configuration, offers a 45ns access time. This surface mount component operates with a 5V supply voltage and features a parallel interface. Designed for industrial temperature ranges (-40°C to 85°C), it is RoHS compliant and available in a 32-pin TSOP-I package.
Frequency45GHz
PackageTFSOP
Current16mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62128ELL-45ZXIT technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
17b
Package/Case
TFSOP
Density
1Mb
Frequency
45GHz
Interface
Parallel
Lead Free
Lead Free
Max Frequency
22MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
Volatile, , SRAM, SDR, RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
5V
Package Quantity
1500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
16mA
Supply Voltage-Nom
5.5V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62128ELL-45ZXIT Datasheet
Download the complete datasheet for Cypress CY62128ELL-45ZXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

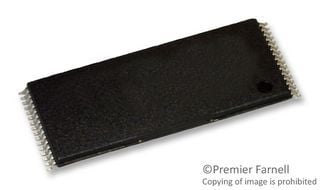

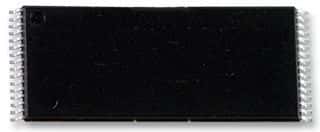

Product Images
