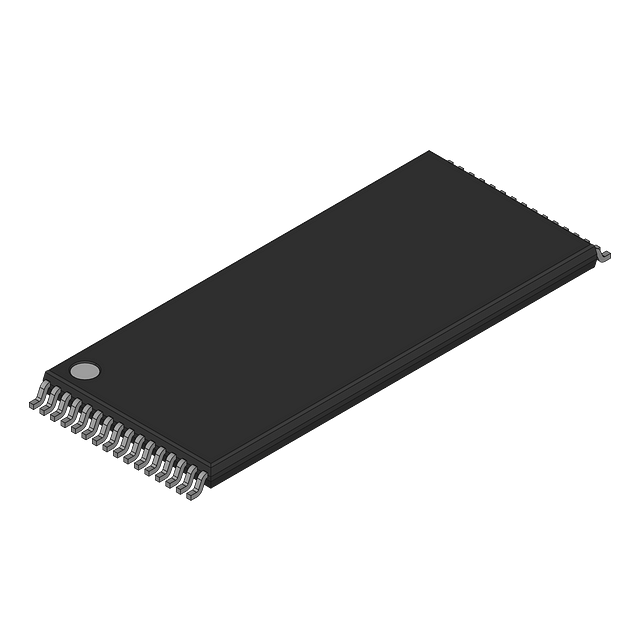

1Mb Asynchronous SRAM, 128K x 8 configuration, offering a fast 45ns access time. This CMOS memory component features a parallel interface and operates with a supply voltage range of 2.2V to 3.6V. Packaged in a lead-free, surface-mount TFSOP, it is designed for reliable operation between -40°C and 85°C.
PackageTFSOP
Current16mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62128EV30LL-45ZAXA technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
17b
Package/Case
TFSOP
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Memory Size
1Mb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Operating Temperature
-40°C
Max Supply Current
35mA
Max Supply Voltage
3.6V
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
3V
Package Quantity
234
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
16mA
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
