1Mb CMOS SRAM, 128K x 8 organization, featuring 55ns access time. This asynchronous, volatile memory offers a parallel interface and operates from a 2.2V to 3.6V supply. Packaged in a 32-pin TSOP, this surface-mount component is lead-free and RoHS compliant, suitable for operation between -40°C and 125°C.
PackageTSOP
Current35mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62128EV30LL-55ZXE technical specifications.
General
Access Time
55ns
Access Time-Max
55ns
Address Bus Width
17b
Package/Case
TSOP
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
125°C
Memory Size
1Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
3V
Package Quantity
156
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
35mA
Supply Voltage-Nom
3V
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62128EV30LL-55ZXE Datasheet
Download the complete datasheet for Cypress CY62128EV30LL-55ZXE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

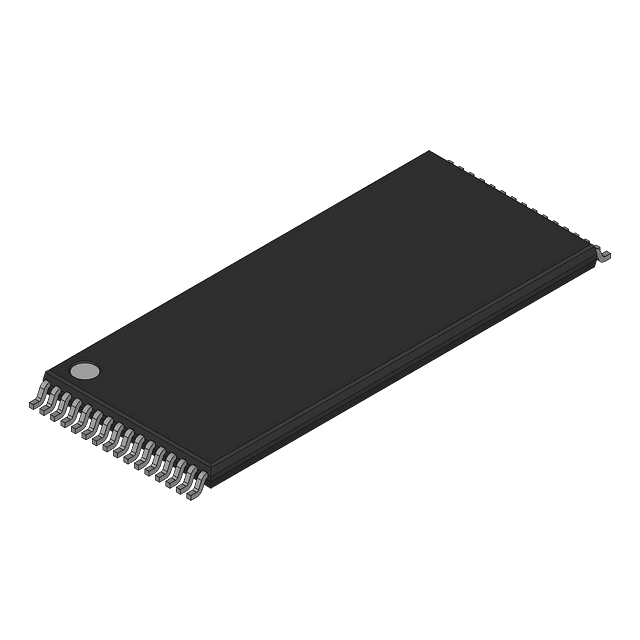

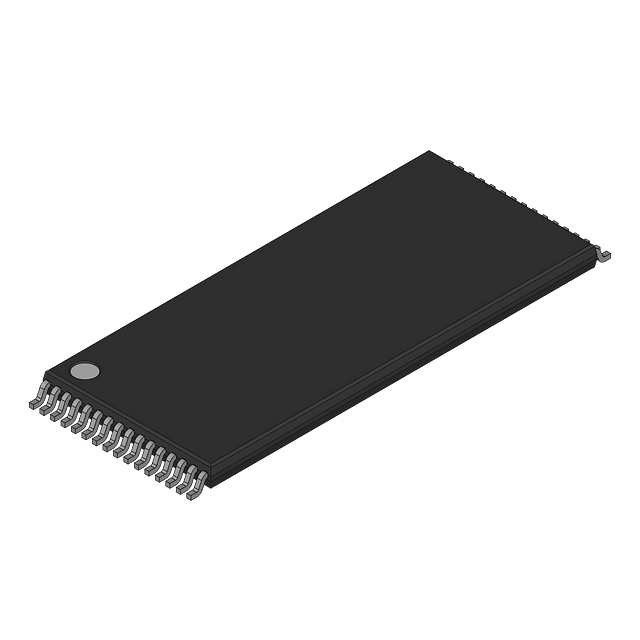

Product Images
