Asynchronous SRAM chip, 2Mb density, 128K x 16 configuration, featuring a 45ns access time. This surface mount component operates with a supply voltage range of 2.2V to 3.6V, nominal 3V, and supports a maximum frequency of 22MHz. It offers a 17-bit address bus and a 16-bit word size, with a supply current of 20mA. Packaged in a 44-pin TSOP-II, this industrial temperature grade component is RoHS compliant.
Frequency22MHz
PackageTSOP
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62136EV30LL-45ZSXI technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
17b
Package/Case
TSOP
Density
2Mb
Interface
Parallel
Lead Free
Lead Free
Max Frequency
22MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
2Mb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Number of Words
128000
Package Quantity
135
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
20mA
Supply Voltage-Nom
3V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62136EV30LL-45ZSXI Datasheet
Download the complete datasheet for Cypress CY62136EV30LL-45ZSXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

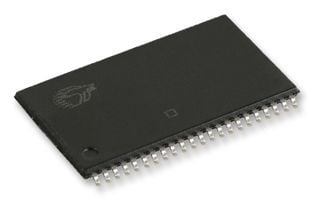

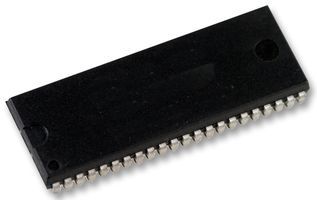

Product Images
