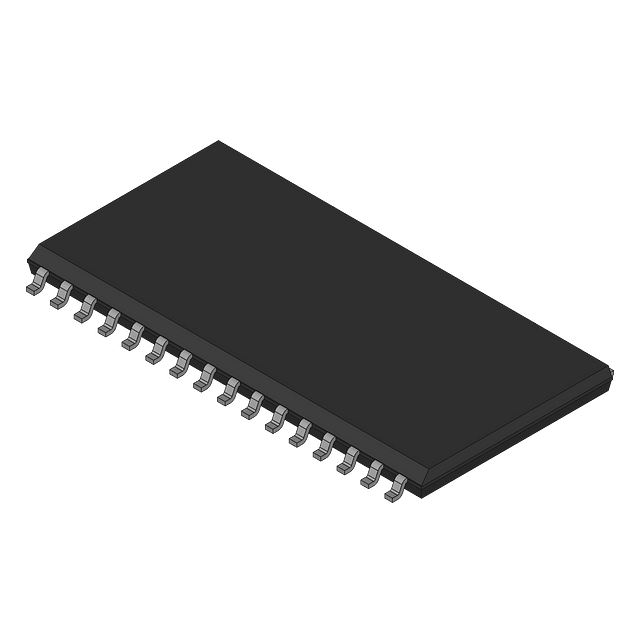

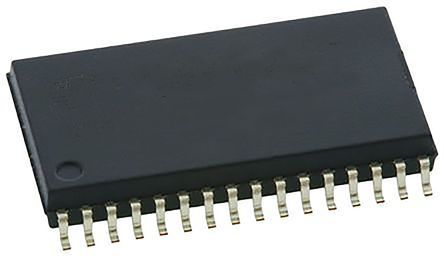

Asynchronous SRAM chip with 4Mb density, organized as 512K x 8 words. Features a 55ns access time and operates from a 4.5V to 5.5V supply voltage, with a nominal 5V. This surface mount component comes in a 32-pin SOIC package and is RoHS compliant. Designed for industrial temperature ranges from -40°C to 85°C, it offers a maximum supply current of 20mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY62148ELL-55SXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY62148ELL-55SXI technical specifications.
| Access Time | 55ns |
| Access Time-Max | 55ns |
| Address Bus Width | 19b |
| Package/Case | SOIC |
| Density | 4Mb |
| Height | 2.997mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 20mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 4Mb |
| Memory Type | SDR, , Volatile, SRAM |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 512000 |
| Operating Supply Voltage | 5V |
| Package Quantity | 750 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MoBL® |
| Supply Current | 20mA |
| Supply Voltage-Nom | 5V |
| Sync/Async | Asynchronous |
| Temperature Grade | INDUSTRIAL |
| Voltage | 5V |
| Weight | 0.027023oz |
| Word Size | 8b |
| RoHS | Compliant |
