4Mb Asynchronous SRAM with 45ns access time. Features a 512K x 8 configuration, 19-bit address bus, and parallel interface. Operates from 2.2V to 3.6V supply voltage, with a nominal 3V. Packaged in a 36-pin VFBGA, suitable for surface mounting. Industrial temperature grade, operating from -40°C to 85°C.
PackageVFBGA
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62148EV30LL-45BVI technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
19b
Package/Case
VFBGA
Density
4Mb
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4Mb
Memory Type
SDR, , RAM, SRAM - Asynchronous
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Number of Words
512000
Package Quantity
480
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Series
MoBL®
Supply Current
20mA
Supply Voltage-Nom
3V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
8b
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY62148EV30LL-45BVI Datasheet
Download the complete datasheet for Cypress CY62148EV30LL-45BVI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

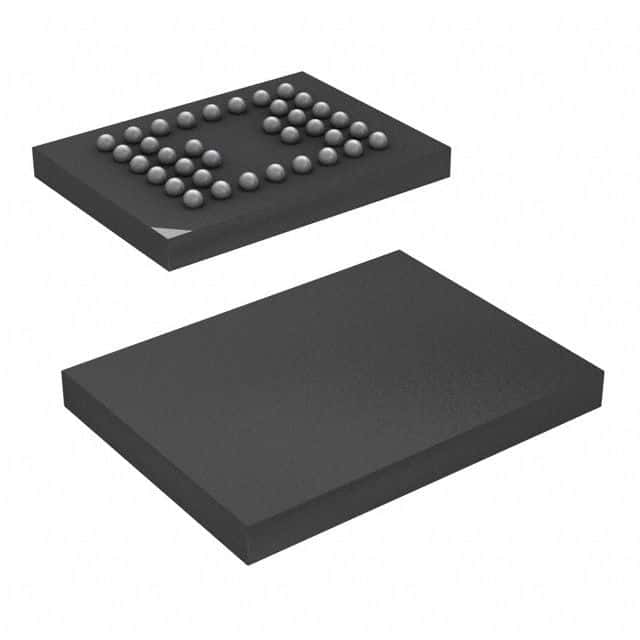

Product Images
