4Mb CMOS SRAM with 45ns access time, featuring a 512K x 8 configuration. This asynchronous, single-port memory operates with a parallel interface and a supply voltage range of 2.2V to 3.6V. Packaged in a VFBGA-36, it supports surface mounting and is RoHS compliant. Designed for industrial temperature ranges from -40°C to 85°C.
Frequency45GHz
PackageVFBGA
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62148EV30LL-45BVXIT technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
19b
Package/Case
VFBGA
Density
4Mb
Frequency
45GHz
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Memory Size
4Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Number of Words
512000
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
20mA
Supply Voltage-Nom
3V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62148EV30LL-45BVXIT Datasheet
Download the complete datasheet for Cypress CY62148EV30LL-45BVXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

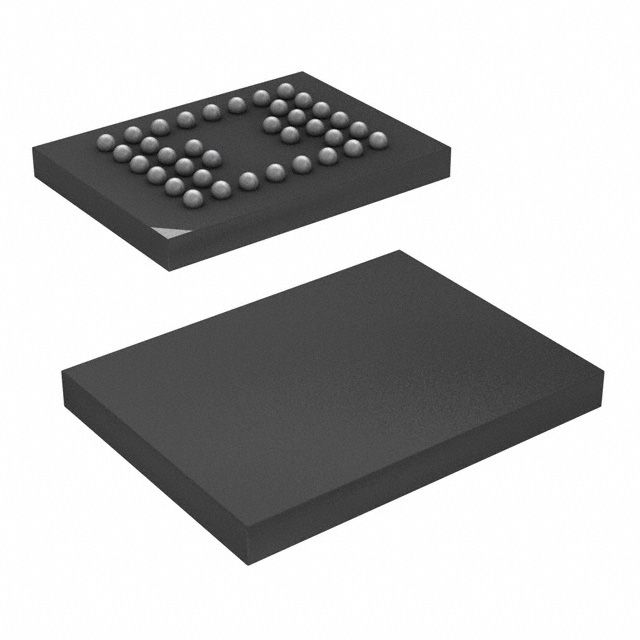

Product Images
