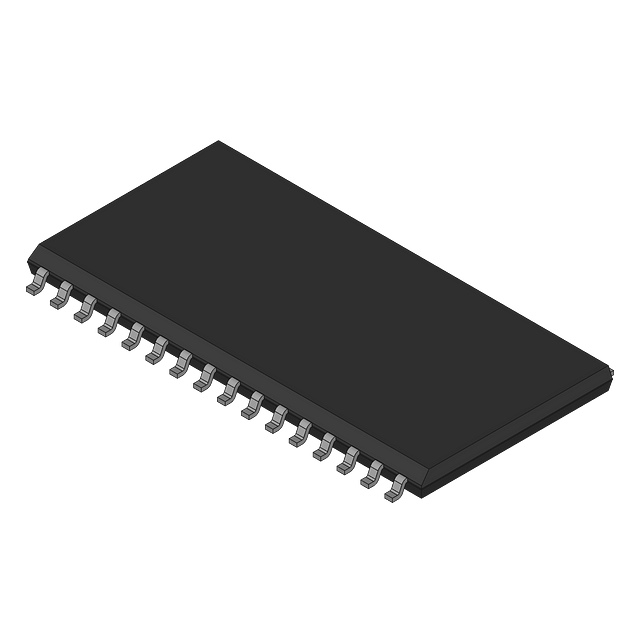

4Mb CMOS SRAM, 512K x 8 configuration, featuring 45ns access time. This asynchronous, volatile memory component offers a parallel interface and operates with a supply voltage range of 2.2V to 3.6V. Packaged in a lead-free TSOP-II (32-pin) for surface mounting, it supports a temperature range of -40°C to 85°C.
PackageTSOP
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62148EV30LL-45ZSXA technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
19b
Package/Case
TSOP
Density
4Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
4Mb
Memory Type
SDR, , Volatile, SRAM
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Number of Words
512000
Package Quantity
117
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
20mA
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62148EV30LL-45ZSXA Datasheet
Download the complete datasheet for Cypress CY62148EV30LL-45ZSXA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
