4Mb CMOS SRAM, 512K x 8 configuration, offering a fast 45ns access time. This asynchronous, volatile memory component features a parallel interface and operates with a supply voltage range of 2.2V to 3.6V. Packaged in a 32-pin TSOP II (SOIC) for surface mounting, it is lead-free and RoHS compliant, suitable for industrial temperature ranges from -40°C to 85°C.
Frequency45GHz
PackageSOIC
Current20mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62148EV30LL-45ZSXIT technical specifications.
General
| Access Time | 45ns |
| Access Time-Max | 45ns |
| Address Bus Width | 19b |
| Package/Case | SOIC |
| Density | 4Mb |
| Frequency | 45GHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4Mb |
| Memory Type | Volatile, , SRAM, SDR, RAM, SRAM - Asynchronous |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 512000 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MoBL® |
| Supply Current | 20mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Temperature Grade | INDUSTRIAL |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY62148EV30LL-45ZSXIT Datasheet
Download the complete datasheet for Cypress CY62148EV30LL-45ZSXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

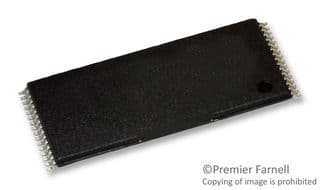

Product Images
