8Mb asynchronous SRAM with a 45ns access time, featuring a 20-bit address bus and 8-bit word size. This CMOS memory component operates with a supply voltage range of 2.2V to 3.6V and a maximum supply current of 25mA. Packaged in a lead-free TSOP-II 44-pin surface mount configuration, it is designed for industrial temperature ranges from -40°C to 85°C.
PackageTSOP
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62158EV30LL-45ZSXI technical specifications.
General
Access Time
45ns
Access Time-Max
45ns
Address Bus Width
20b
Package/Case
TSOP
Density
8Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
25mA
Max Supply Voltage
3.6V
Memory Size
8Mb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Package Quantity
135
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MoBL®
Supply Current
25mA
Supply Voltage-Nom
3V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62158EV30LL-45ZSXI Datasheet
Download the complete datasheet for Cypress CY62158EV30LL-45ZSXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

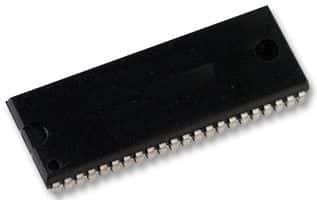

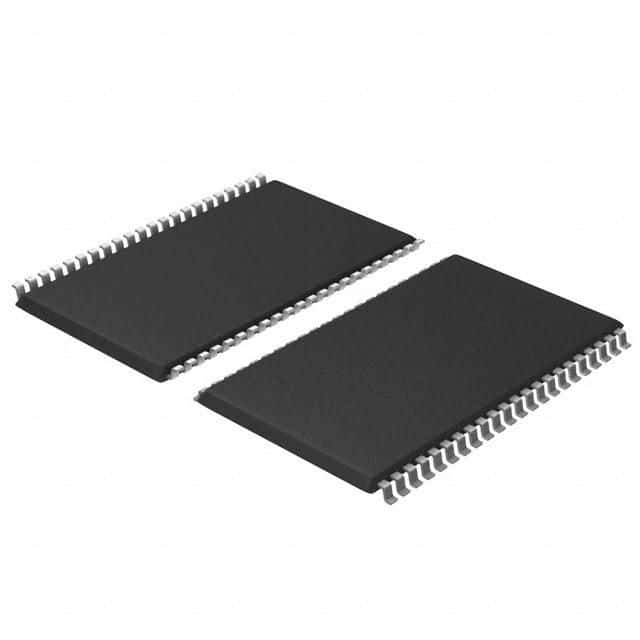

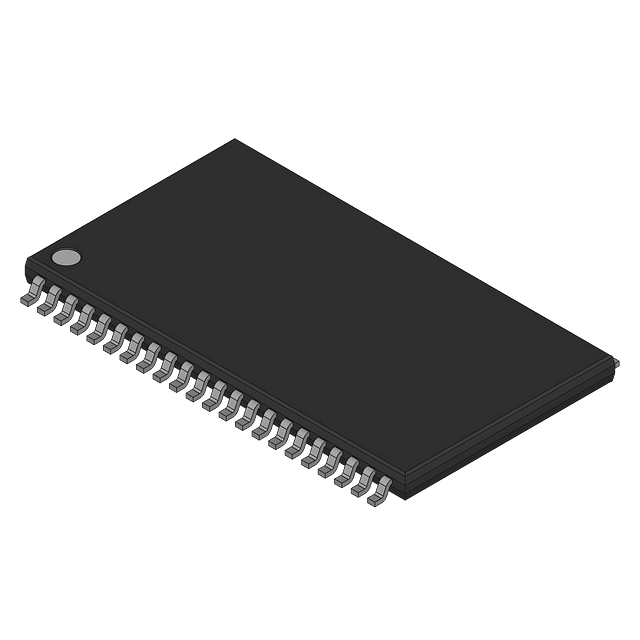

Product Images
