Cypress
CY62167DV30LL-55BVIT
Standard SRAM, 1MX16, 55ns, CMOS, PBGA48, 8 X 9.50 MM, 1 MM HEIGHT, VFBGA-48
PackageVFBGA
Current30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62167DV30LL-55BVIT technical specifications.
General
Access Time
55ns
Address Bus Width
20b
Package/Case
VFBGA
Density
16Mb
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16Mb
Memory Type
SDR, , RAM, SRAM - Asynchronous
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Operating Supply Voltage
3V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
No
Series
MoBL®
Supply Current
30mA
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Not CompliantNo
Datasheet
Cypress CY62167DV30LL-55BVIT Datasheet
Download the complete datasheet for Cypress CY62167DV30LL-55BVIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

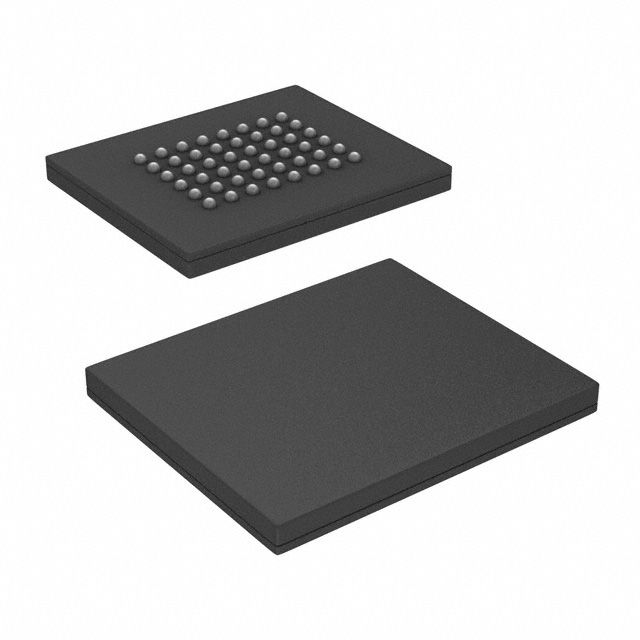

Product Images
