16Mb CMOS SRAM, 1Mx16 configuration, featuring 55ns access time. This asynchronous, volatile memory component offers a parallel interface and operates with a supply voltage range of 2.2V to 3.6V. Packaged in a VFBGA (48-ball) for surface mounting, it supports an industrial temperature grade from -40°C to 85°C and is lead-free and RoHS compliant.
PackageVFBGA
Current30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY62167DV30LL-55BVXIT technical specifications.
General
Access Time
55ns
Access Time-Max
55ns
Address Bus Width
20b
Package/Case
VFBGA
Density
16Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16Mb
Memory Type
SDR, , Volatile, SRAM
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of Ports
1
Operating Supply Voltage
3V
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
MoBL®
Supply Current
30mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY62167DV30LL-55BVXIT Datasheet
Download the complete datasheet for Cypress CY62167DV30LL-55BVXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

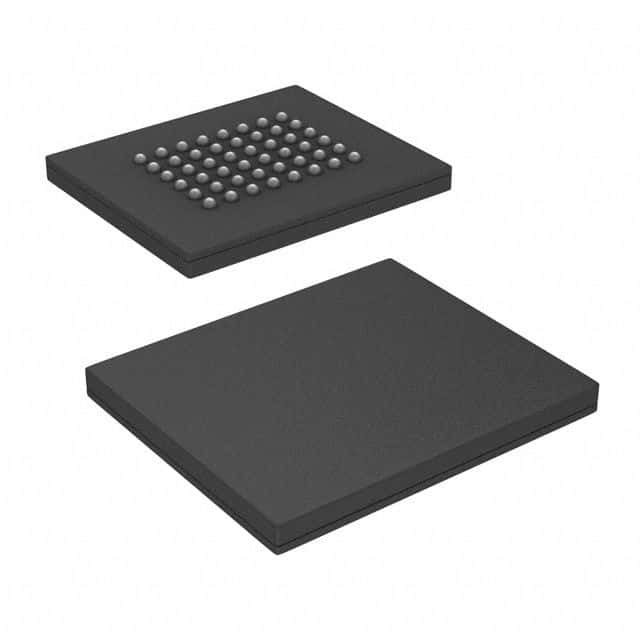

Product Images
