CYPRESS

CY62256VNLL-70SNXI

Datasheet

256Kb SRAM, 32Kx8, 70ns, CMOS, SOIC-28, Parallel

Cypress

CY62256VNLL-70SNXI

Name: CY62256VNLL-70SNXI Cypress
Brand: Cypress
SKU: CY62256VNLL-70SNXI

256Kb SRAM, 32Kx8, 70ns, CMOS, SOIC-28, Parallel

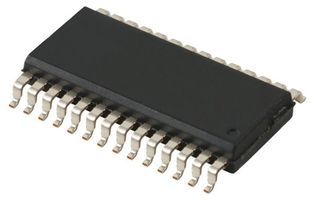

256Kb CMOS SRAM, 32K x 8 organization, featuring a 70ns access time. This asynchronous, single-port memory operates with a parallel interface and a supply voltage range of 2.7V to 3.6V. Packaged in a 28-lead SOIC (0.300 inch width), it supports industrial temperature grades from -40°C to 85°C. RoHS compliant and lead-free.

Frequency1MHz

PackageSOIC

Current30mA

MountingSurface Mount

Quick Jump:

Technical Specifications

Cypress CY62256VNLL-70SNXI technical specifications.

General

Access Time	70ns
Access Time-Max	70ns
Address Bus Width	15b
Package/Case	SOIC
Density	256Kb
Frequency	1MHz
Height	0.11inch
Interface	Parallel
Lead Free	Lead Free
Length	18.03mm
Max Frequency	14MHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	3.6V
Memory Size	256Kb
Memory Type	Volatile, , SRAM, SDR
Min Supply Voltage	2.7V
Mount	Surface Mount
Number of Ports	1
Number of Words	32000
Operating Supply Voltage	3V
Package Quantity	27
Packaging	Rail/Tube
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	MoBL®
Supply Current	30mA
Supply Voltage-Nom	3V
Sync/Async	Asynchronous
Temperature Grade	INDUSTRIAL
Width	0.3inch
Word Size	8b
