Cypress
CY7B991-7JC
PLL Based Clock Driver, 7B Series, 4 True Output(s), 0 Inverted Output(s), BICMOS, PQCC32, PLASTIC, LCC-32
Frequency80MHz
PackagePLCC
Current85mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7B991-7JC technical specifications.
General
Package/Case
PLCC
Contact Plating
Tin, Lead
Duty Cycle
50%
Input
TTL
Lead Free
Contains Lead
Max Frequency
80MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
190mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Outputs
8
Operating Supply Voltage
5V
Package Quantity
30
Packaging
Rail/Tube
Power Dissipation
78mW
RoHS Compliant
No
Series
RoboClock™
Supply Current
85mA
Compliance
RoHS
Not Compliant
Datasheet
Cypress CY7B991-7JC Datasheet
Download the complete datasheet for Cypress CY7B991-7JC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

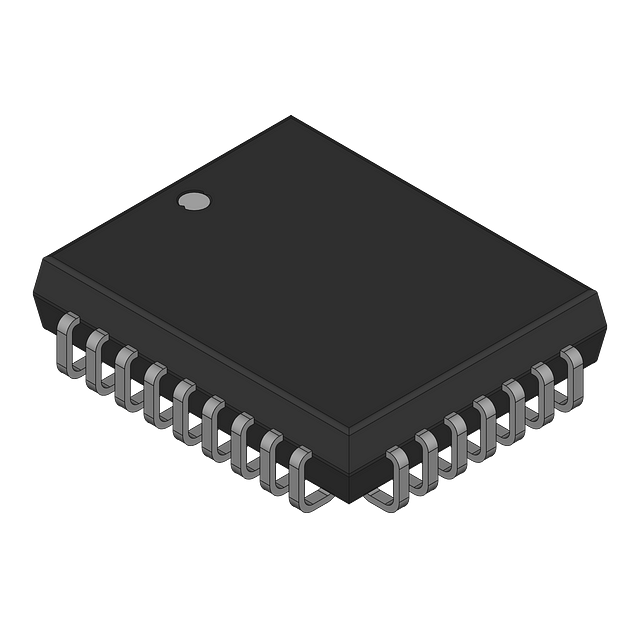

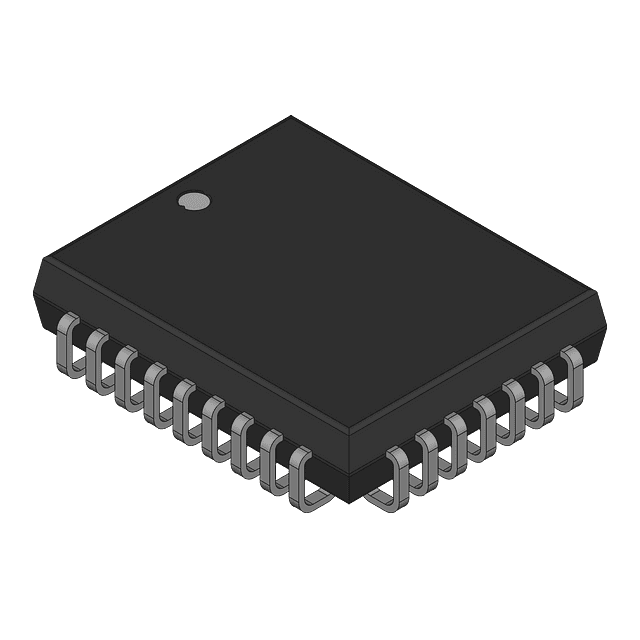

Product Images
