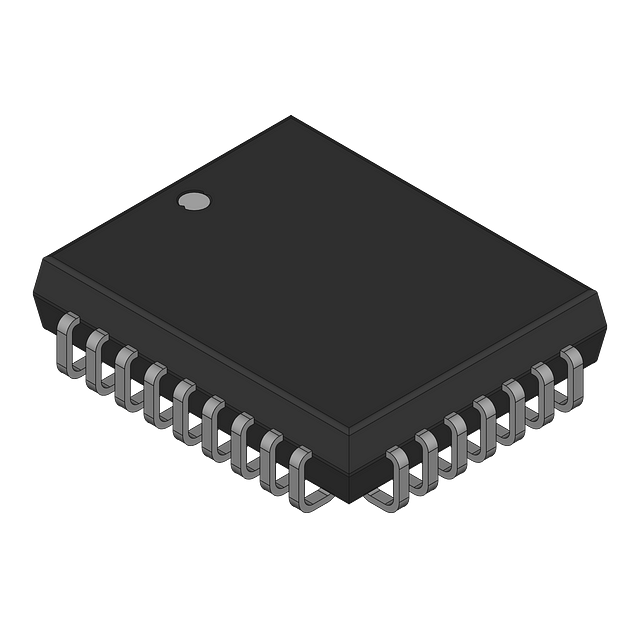

The CY7B992-7JC is an 8-output clock buffer with a supply voltage of 5V and a maximum supply current of 90mA. It operates over a temperature range of -40°C to 70°C and is packaged in a PLCC package. The device is not RoHS compliant due to the presence of lead in the contact plating. It is available in rail or tube packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7B992-7JC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY7B992-7JC technical specifications.
| Package/Case | PLCC |
| Contact Plating | Tin, Lead |
| Height | 0.14inch |
| Lead Free | Contains Lead |
| Length | 11.51mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 90mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Width | 0.553inch |
| RoHS | Not Compliant |
