Cypress
CY7B994V-5BBXI
PLL Based Clock Driver, 7B Series, 16 True Output(s), 0 Inverted Output(s), PBGA100, BGA-100
Frequency200MHz
PackageTBGA
Current250mA
Quick Jump:
Technical Specifications
Cypress CY7B994V-5BBXI technical specifications.
General
Package/Case
TBGA
Contact Plating
Copper, Tin, Silver
Input
LVTTL
Lead Free
Lead Free
Max Frequency
200MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of Circuits
1
Number of Elements
1
Number of Outputs
18
Operating Supply Voltage
3.3V
Package Quantity
176
Packaging
Tray
PLL
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Series
RoboClock™
Supply Current
250mA
Supply Voltage-Nom
3.3V
Compliance
RoHS
Compliant
Datasheet
Cypress CY7B994V-5BBXI Datasheet
Download the complete datasheet for Cypress CY7B994V-5BBXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

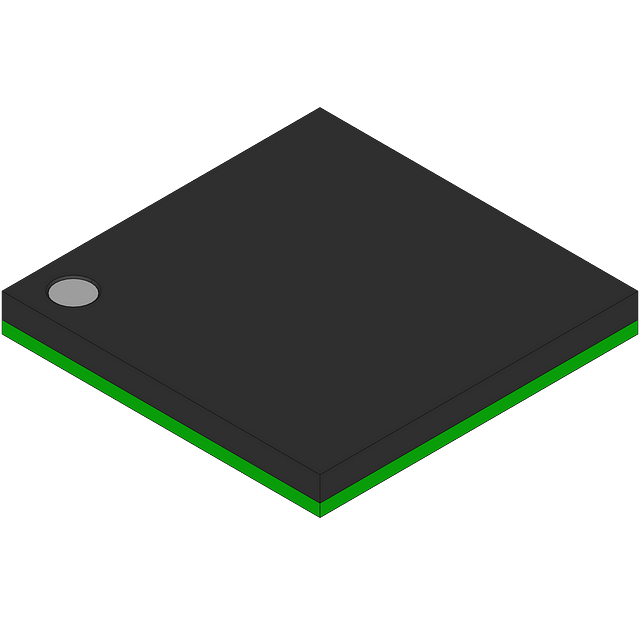

Product Images
