4Mb Dual-Port SRAM, featuring a 128K x 36 configuration and 4ns access time. This synchronous memory operates at up to 133MHz with a 3.3V supply voltage. Packaged in a 172-ball FBGA with a 1mm pitch, it supports parallel interface and surface mounting. Operating temperature range is -40°C to 85°C.
Frequency133MHz
PackageFBGA
Current300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C0852AV-133BBI technical specifications.
General
| Access Time | 4.4ns |
| Access Time-Max | 4.4ns |
| Address Bus Width | 17b |
| Package/Case | FBGA |
| Density | 4Mb |
| Frequency | 133MHz |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Frequency | 133MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 4Mb |
| Memory Type | SDR, , RAM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Ports | 2 |
| Number of Words | 128000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 126 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Current | 300mA |
| Sync/Async | Synchronous |
| Word Size | 36b |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Cypress CY7C0852AV-133BBI Datasheet
Download the complete datasheet for Cypress CY7C0852AV-133BBI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

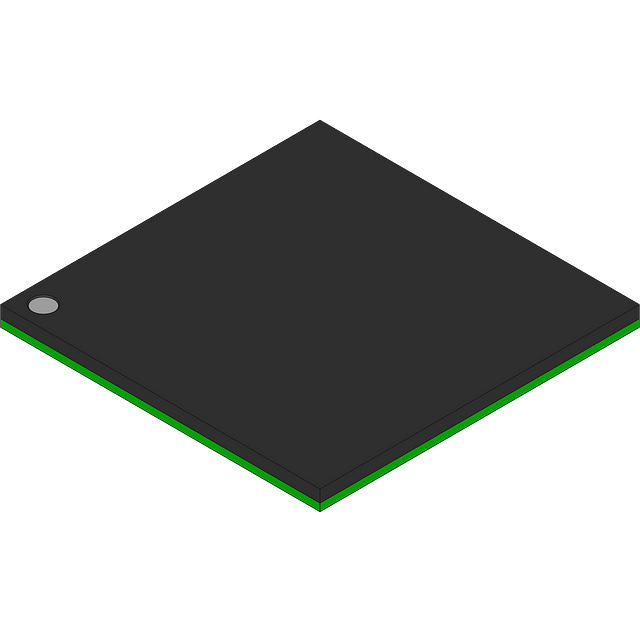

Product Images
