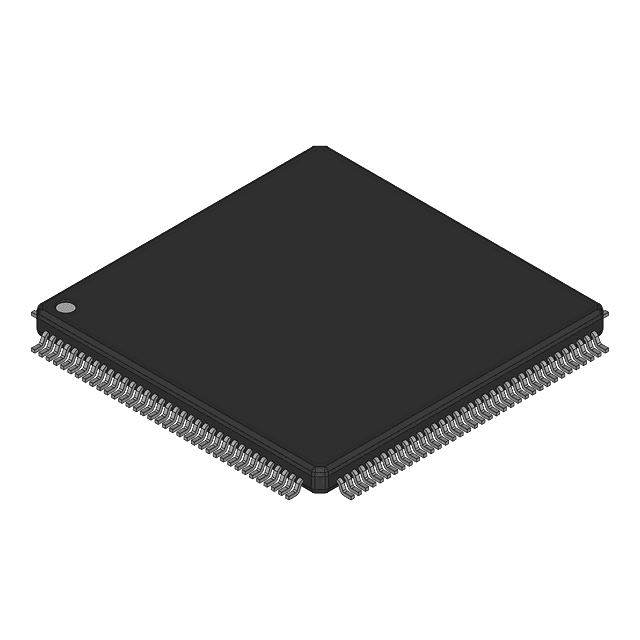

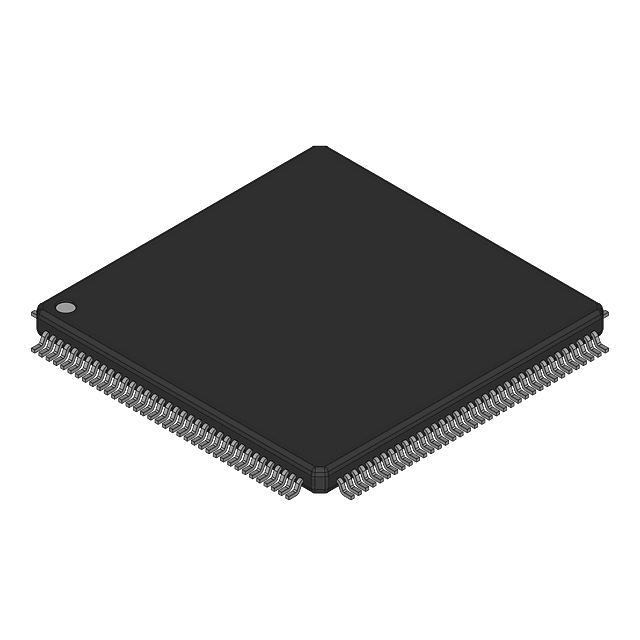

1.125Mb Dual-Port SRAM, 32K x 36, featuring 18ns access time and 83MHz maximum frequency. This synchronous, CMOS memory operates with a 3.3V supply voltage and offers a parallel interface. Packaged in a 144-pin TQFP (20 x 20 mm, 1.40 mm height) for surface mounting, it is RoHS compliant and suitable for operation between 0°C and 70°C.
Frequency45MHz
PackageTQFP
Current360mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C09579V-83AXC technical specifications.
General
| Access Time | 18ns |
| Access Time-Max | 18ns |
| Address Bus Width | 30b |
| Package/Case | TQFP |
| Density | 1.125Mb |
| Frequency | 45MHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 83MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.465V |
| Memory Size | 1Mb |
| Memory Type | SDR, , RAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Ports | 2 |
| Number of Words | 32000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 60 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 360mA |
| Sync/Async | Synchronous |
| Word Size | 36b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C09579V-83AXC Datasheet
Download the complete datasheet for Cypress CY7C09579V-83AXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
