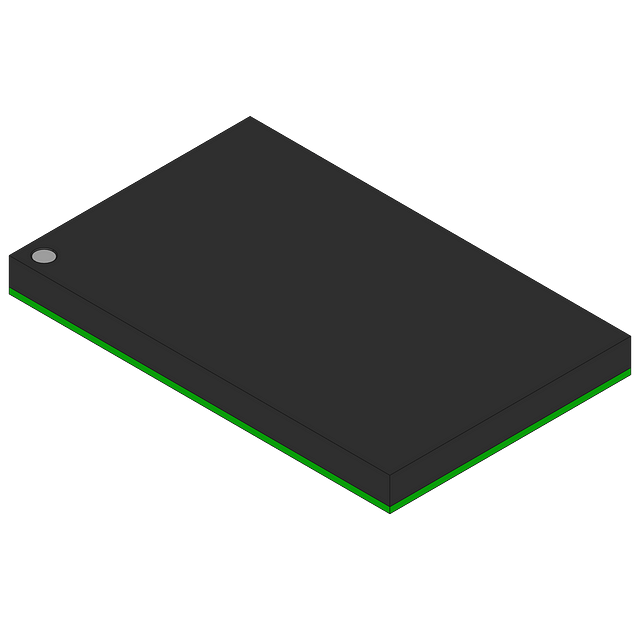

12Mb SRAM, 512K x 24 configuration, featuring 8ns access time. This asynchronous, CMOS memory component operates with a 3.3V supply voltage and a 19-bit address bus. Packaged in a 119-ball PBGA (14 x 22 MM, 2.40 MM HEIGHT) for surface mounting, it supports a commercial temperature grade (0°C to 70°C).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C1012AV33-8BGC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 8ns |
| Access Time-Max | 80ns |
| Address Bus Width | 19b |
| Package/Case | BGA |
| Density | 12Mb |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 12Mb |
| Memory Type | SDR, , Volatile, SRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 512000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 84 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Current | 300mA |
| Supply Voltage-Nom | 3.3V |
| Sync/Async | Asynchronous |
| Temperature Grade | COMMERCIAL |
| Word Size | 24b |
| RoHS | Not CompliantNo |
