1Mb Asynchronous SRAM with 10ns access time, featuring a 128K x 8 organization. This CMOS component operates at 3.3V, supporting a frequency up to 100MHz. It utilizes a parallel interface and is housed in a 32-pin SOJ surface-mount package. Operating temperature range is -40°C to 85°C, with lead-free and RoHS compliance.
Frequency100MHz
PackageSOJ
Current60mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1018DV33-10VXIT technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
17b
Package/Case
SOJ
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Memory Size
1Mb
Memory Type
SDR, , RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
60mA
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1018DV33-10VXIT Datasheet
Download the complete datasheet for Cypress CY7C1018DV33-10VXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

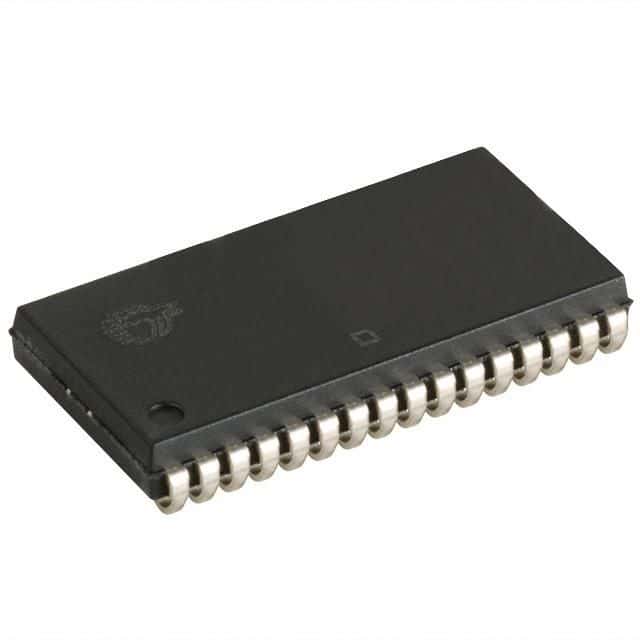

Product Images
