Asynchronous SRAM chip, 1Mb density, featuring a 128K x 8 organization. Offers a 10ns access time and operates at 3.3V with a 3V to 3.6V supply voltage range. This surface mount component supports a parallel interface and has an 8-bit word size. Designed for automotive applications, it operates from -40°C to 85°C and is RoHS compliant.
Frequency100MHz
PackageSOIC
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1019CV33-10ZXA technical specifications.
General
Access Time
10ns
Address Bus Width
17b
Package/Case
SOIC
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
1Mb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
3.3V
Package Quantity
117
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
80mA
Sync/Async
Asynchronous
Word Size
8b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1019CV33-10ZXA Datasheet
Download the complete datasheet for Cypress CY7C1019CV33-10ZXA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

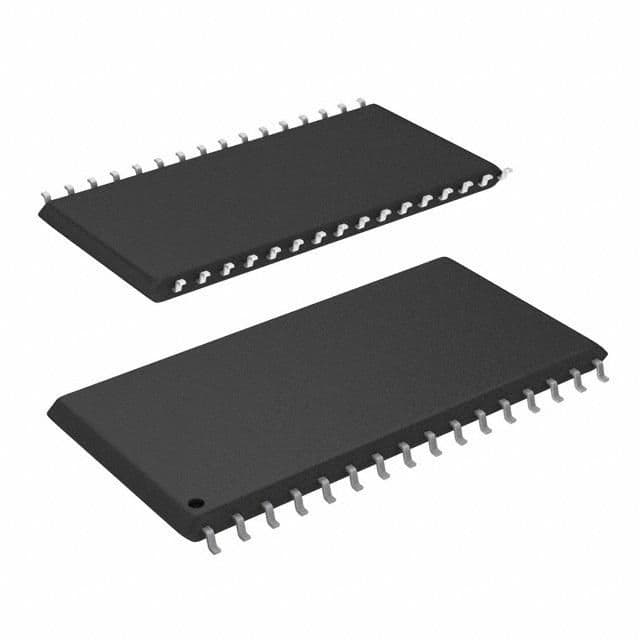

Product Images
