1Mb CMOS SRAM, 128K x 8 organization, offers a fast 10ns access time and 100MHz maximum frequency. This asynchronous, parallel interface memory operates at 3.3V, with a voltage range of 3V to 3.6V. Packaged in a 32-pin TSOP II (SOIC) surface mount configuration, it features industrial temperature operation from -40°C to 85°C and is lead-free and RoHS compliant.
Frequency100MHz
PackageSOIC
Current60mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1019DV33-10ZSXI technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 17b |
| Package/Case | SOIC |
| Density | 1Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 1Mb |
| Memory Type | Volatile, , SRAM, SDR |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 128000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 117 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 60mA |
| Supply Voltage-Nom | 3.3V |
| Sync/Async | Asynchronous |
| Temperature Grade | INDUSTRIAL |
| Word Size | 8b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C1019DV33-10ZSXI Datasheet
Download the complete datasheet for Cypress CY7C1019DV33-10ZSXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

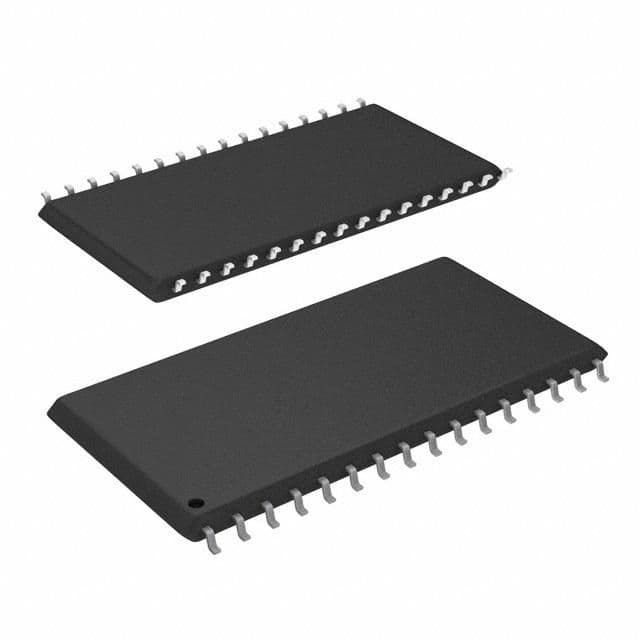

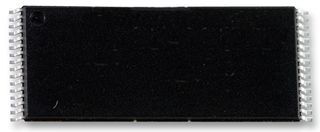

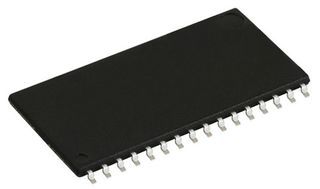

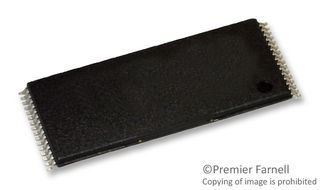

Product Images
