Asynchronous SRAM chip, 1Mb density, organized as 64K x 16 bits. Features a 10ns access time and operates with a 5V supply voltage. This 44-pin SOJ package surface-mount component offers a 16-bit parallel interface and a maximum operating frequency of 100MHz. Suitable for industrial temperature ranges from -40°C to 85°C, it is RoHS compliant.
Frequency100MHz
PackageSOJ
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1021D-10VXI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
16b
Package/Case
SOJ
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Ports
1
Number of Words
64000
Operating Supply Voltage
5V
Package Quantity
17
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
80mA
Supply Voltage-Nom
5V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1021D-10VXI Datasheet
Download the complete datasheet for Cypress CY7C1021D-10VXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

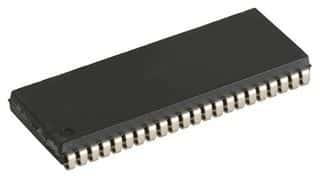

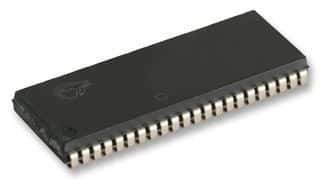

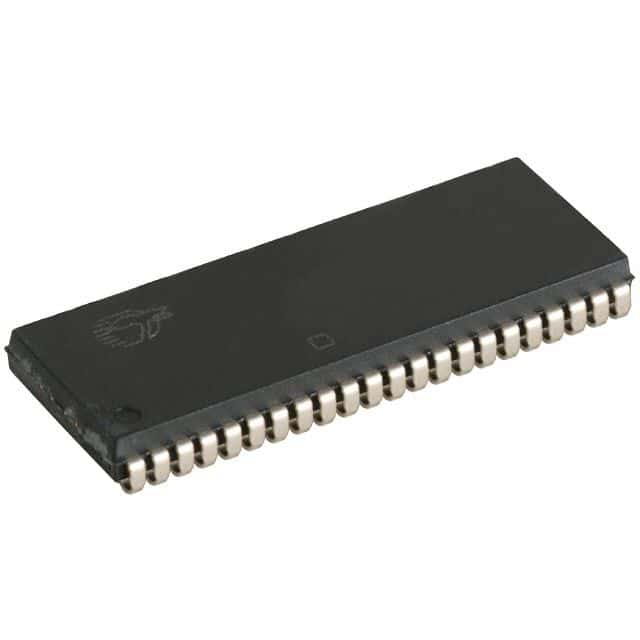

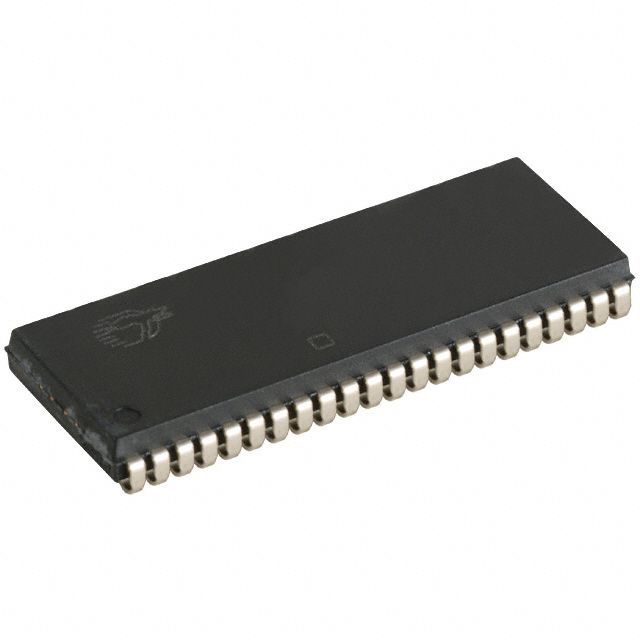

Product Images
