1Mb Asynchronous SRAM, 64K x 16 configuration, featuring a 10ns access time. This CMOS component operates with a 5V supply voltage, supporting a frequency up to 100MHz. Packaged in a 44-pin SOJ surface mount format, it offers a wide operating temperature range from -40°C to 85°C. The device is lead-free and RoHS compliant.
Frequency100MHz
PackageSOJ
Current80mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1021D-10VXIT technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 16b |
| Package/Case | SOJ |
| Density | 1Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Mb |
| Memory Type | Volatile, , SRAM, SDR, RAM, SRAM - Asynchronous |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 64000 |
| Operating Supply Voltage | 5V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 80mA |
| Supply Voltage-Nom | 2V |
| Sync/Async | Asynchronous |
| Temperature Grade | COMMERCIAL |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C1021D-10VXIT Datasheet
Download the complete datasheet for Cypress CY7C1021D-10VXIT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

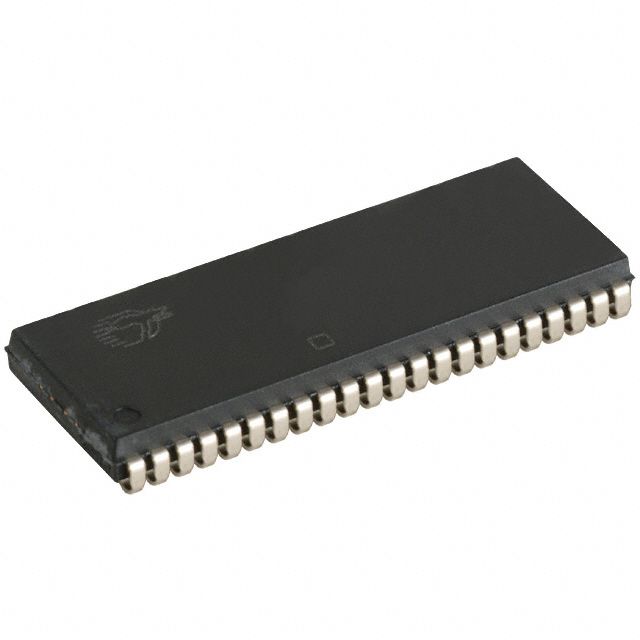

Product Images
