1Mb SRAM, 64K x 16 configuration, featuring a 10ns access time and 100MHz maximum frequency. This asynchronous, volatile memory utilizes a parallel interface and operates with a 3.3V supply voltage. Packaged in a surface-mount SOJ-44, it is RoHS compliant and rated for industrial temperature ranges (-40°C to 85°C).
Frequency100MHz
PackageSOJ
Current60mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1021DV33-10VXI technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Address Bus Width
16b
Package/Case
SOJ
Density
1Mb
Interface
Parallel
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
1Mb
Memory Type
Volatile, , SRAM, SDR
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Ports
1
Number of Words
64000
Operating Supply Voltage
3.3V
Package Quantity
17
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
60mA
Supply Voltage-Nom
3.6V
Sync/Async
Asynchronous
Temperature Grade
INDUSTRIAL
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C1021DV33-10VXI Datasheet
Download the complete datasheet for Cypress CY7C1021DV33-10VXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

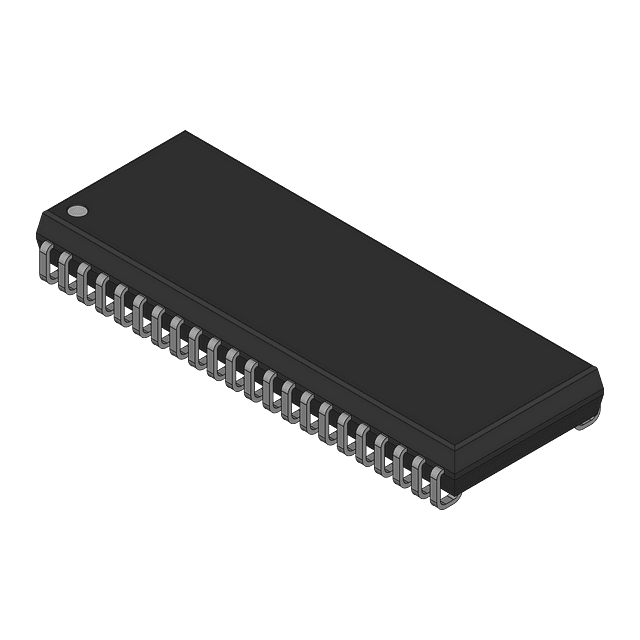

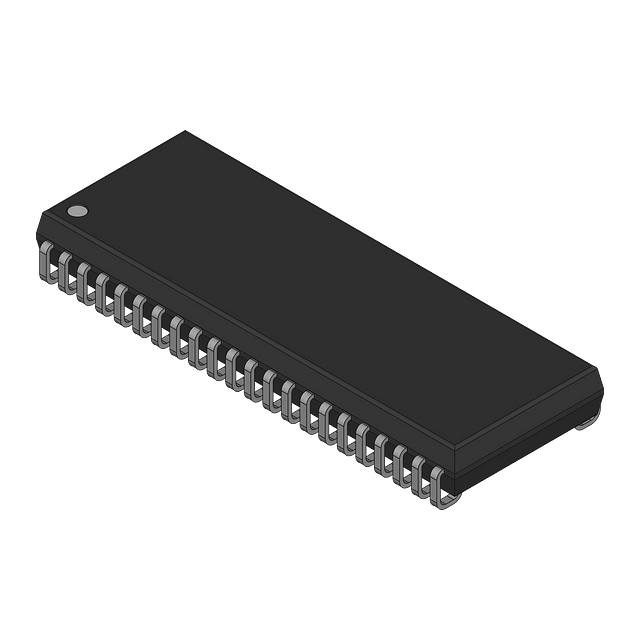

Product Images
