1Mb Asynchronous SRAM, 64K x 16 configuration, featuring a 10ns access time and 100MHz maximum frequency. This CMOS component operates with a 3.3V supply voltage and is housed in a 44-pin SOJ surface-mount package. Designed for industrial temperature ranges (-40°C to 85°C), it offers a parallel interface and is RoHS compliant.
Frequency100MHz
PackageSOJ
Current60mA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Cypress CY7C1021DV33-10VXIT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Cypress CY7C1021DV33-10VXIT technical specifications.
General
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 16b |
| Package/Case | SOJ |
| Density | 1Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 1Mb |
| Memory Type | SDR, , RAM, SRAM - Asynchronous |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Number of Words | 64000 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 60mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous |
| Temperature Grade | INDUSTRIAL |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C1021DV33-10VXIT Datasheet
Download the complete datasheet for Cypress CY7C1021DV33-10VXIT to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

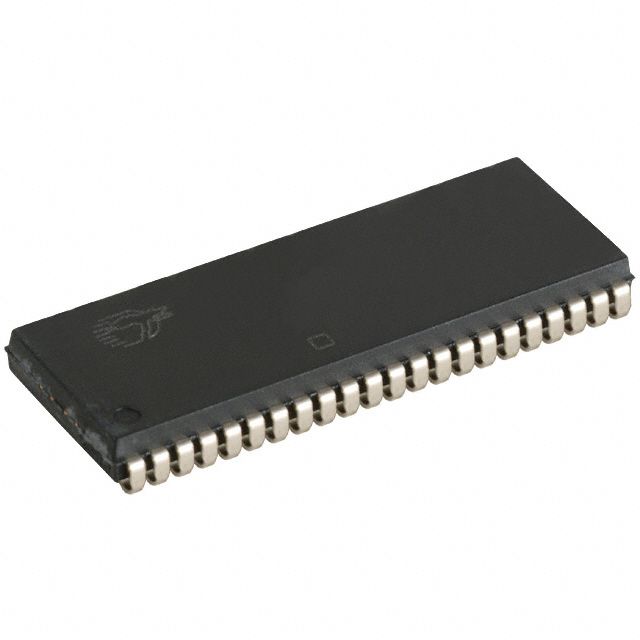

Product Images
